| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

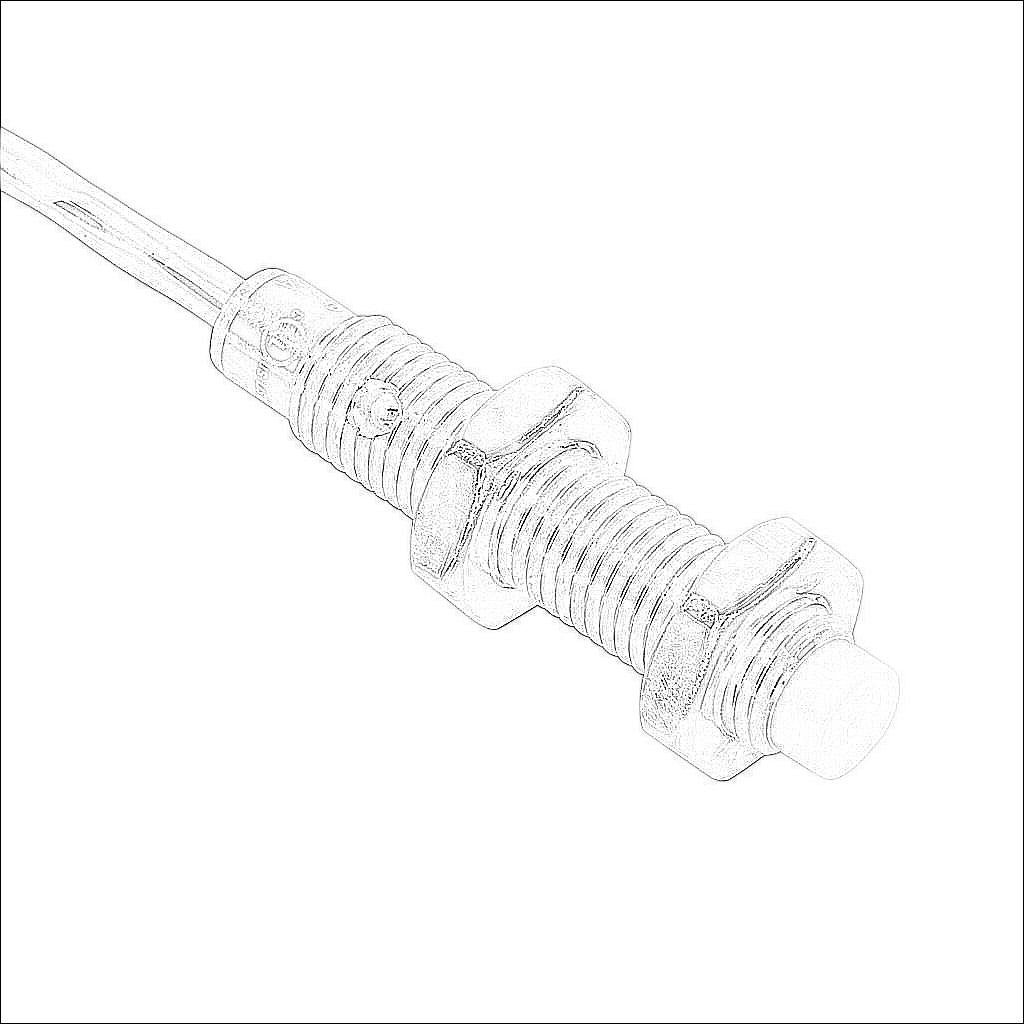

| Item | Proximity sensor | |
| Sensor Type | Capacitive | |
| Shape | Tubular | |
| Housing Size | 8mm diameter x 42mm body | |
| Housing Material | Stainless steel | |
| Barrel Type | Threaded | |
| Adjustable | Yes | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.O. output | |
| Sensing Distance | 3mm | |
| Mounting Type | Non-flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 100 Hz | |
| Operating Voltage | 11-30 VDC | |
| Weld Field Immune | No | |
| IP Rating | IP65 | |
| Connection | Pigtail | |
| Conductor Size | 0.14mm2 (26 AWG) | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PUR | |
| Includes | Mounting hardware | |
