| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

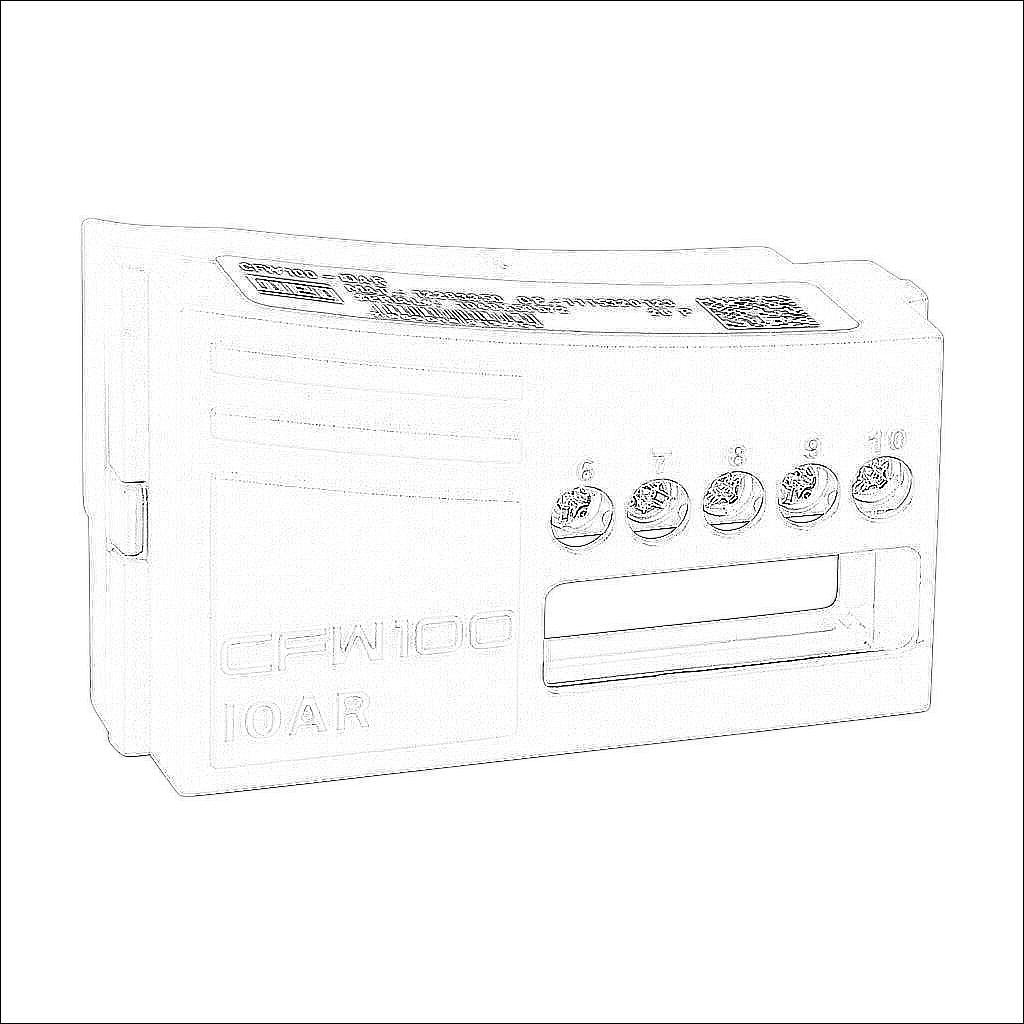

| Item | Combo module | |
| I/O Module Type | Relay/analog | |
| Series | CFW100 | |
| Number of Analog Input Channels | 1 | |
| Analog Input Signal Type | Current/voltage | |
| Number of Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 1 | |
| Input Resolution | 10-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-30 VDC | |
| Number of Discrete Output Points | 1 | |
| Nominal Output Voltage | 250 VAC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (1) Form A (SPST) relay | |
| Load Current | 0.5A/point | |
| For Use With | WEG CFW100 series AC drives | |
