| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

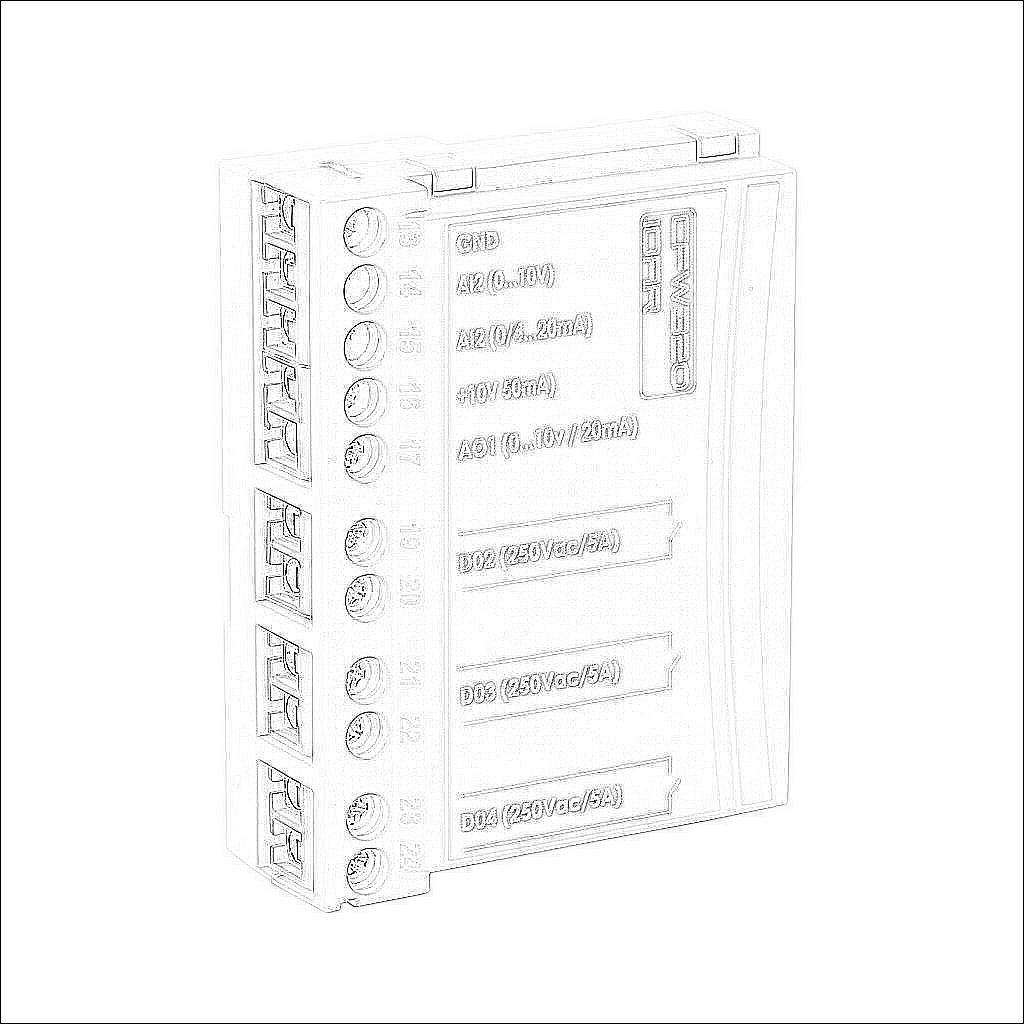

| Item | Combo module | |
| I/O Module Type | Relay/analog | |
| Series | CFW320 | |
| Number of Analog Input Channels | 1 | |
| Analog Input Signal Type | Current/voltage | |
| Input Resolution | 10-bit | |
| Input Current Signal Range | 0-20 mA and 4-20 mA | |
| Input Voltage Signal Range | 0-10 VDC | |
| Number of Analog Output Channels | 1 | |
| Analog Output Signal Type | Current/voltage | |
| Output Resolution | 12-bit | |
| Output Current Signal Range | 0-20 mA and 4-20 mA | |
| Output Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Output Points | 3 | |
| Nominal Output Voltage | 250 VAC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (3) Form A (SPST) relays | |
| Number of Isolated Discrete Output Commons | 3 | |
| Number of Points per Discrete Output Common | 1 | |
| Load Current | 5A/point | |
| For Use With | WEG CFW320 series AC drives | |
