| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

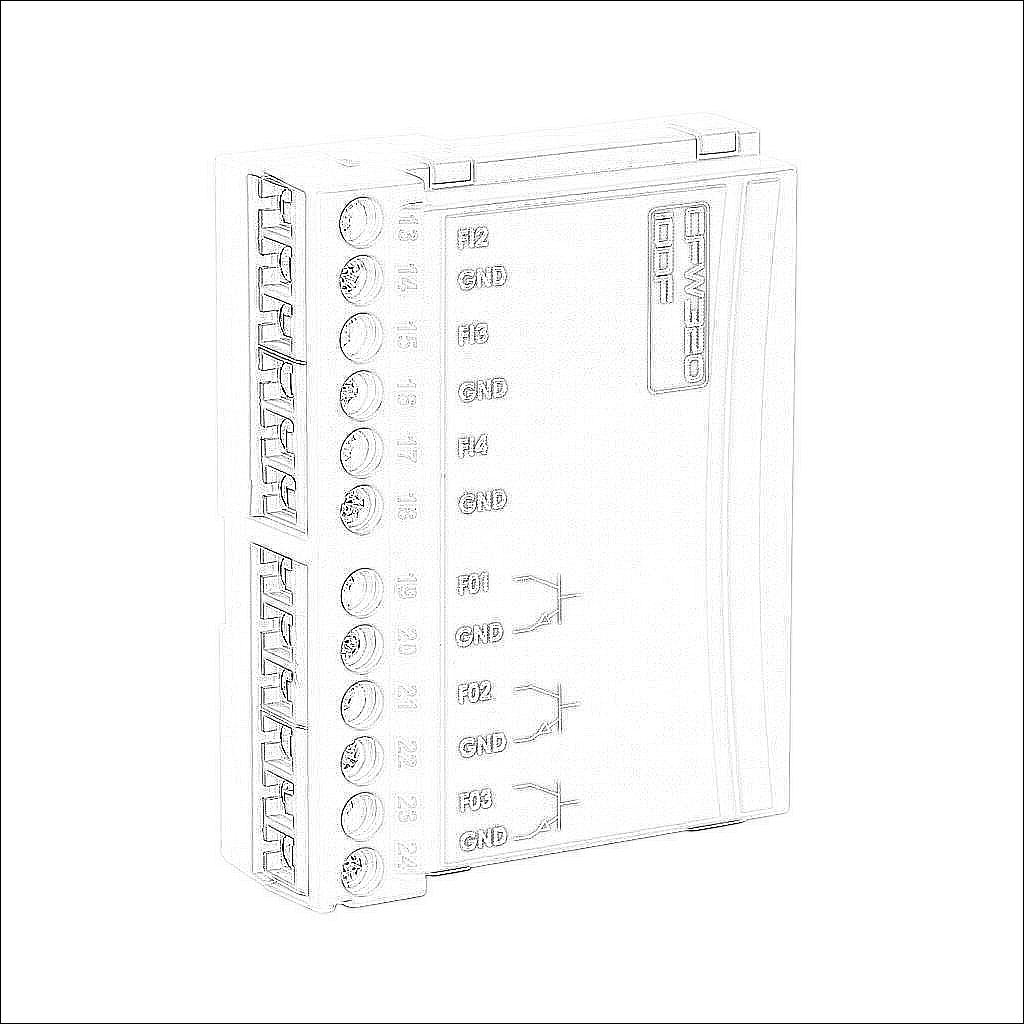

| Item | Combo module | |
| I/O Module Type | Pulse | |
| Series | CFW320 | |
| Maximum Switching Frequency | 3 kHz | |
| Number of High-Speed Capable Input Points | 3 | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking | |
| Number of Non-Isolated Input Commons | 1 | |
| Number of Input Channels | 3 | |
| Encoder Input Type |
| |
| Number of High-Speed Capable Output Points | 3 | |
| Nominal Output Voltage | 24 VDC | |
| Discrete Output Type | Sourcing | |
| Number of Non-Isolated Output Commons | 1 | |
| Number of Isolated Output Commons | 3 | |
| Load Current | 20 mA/point | |
| Number of Output Channels | 3 | |
| Pulse Output Channel Type |
| |
| For Use With | WEG CFW320 series AC drives | |
| Requires | WEG CFW320 series communication module for WPS software module configuration | |
| Programming Software | WEG WPS programming software version 3.1 or later | |
