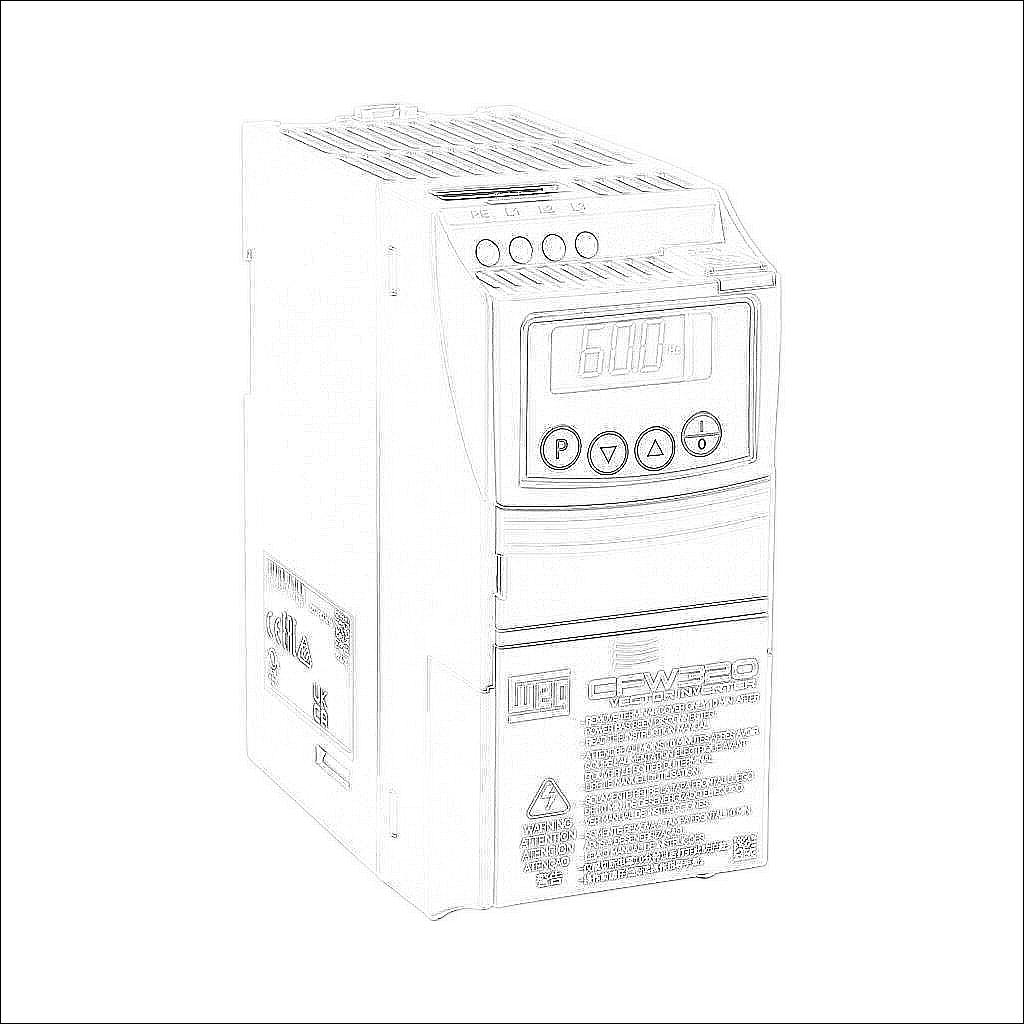

| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |
| Item | Drive | |
| Controller Type | General purpose | |
| Series | CFW320 | |
| Voltage Type | AC | |
| Nominal Drive Input Voltage | 230 VAC | |
| Nominal Drive Output Voltage | 230 VAC | |
| Number of Input Phases | 3 | |
| Number of Output Phases | 3 | |
| Horsepower By Input Phase | 1/2hp with 3-phase input | |
| Amperage Rating | 2.6A | |
| Control Mode | SVC, V/Hz or VVW | |
| Integrated EMI Filter | No | |
| Safe Torque Off (STO) | No | |
| Temperature Rating | 0 to 50 deg C | |
| Enclosure Type | Enclosed | |
| IP Rating | IP20 | |
| Mounting | 35mm DIN rail, panel or wall | |
| Frame Size | A | |
| Input Signal | 4-20 mA, voltage or potentiometer input | |
| Output Type | PWM output | |
| Reverse Capability | Built-in | |
| Internally Bypassed | No | |
| Carrier Frequency Range | 2.5-15 kHz | |
| Output Frequency Range | 0.1-400 Hz | |
| Number of Analog Input Channels | 1 | |
| Number Of Input Channels | 1 | |
| Analog Input Signal Type | Current/voltage | |
| Number of Non-Isolated Analog Input Commons | 1 | |
| Number of Points per Analog Input Common | 1 | |
| Input Resolution | 10-bit | |
| Input Current Signal Range | 4-20 mA | |
| Input Voltage Signal Range | 0-10 VDC | |
| Number of Discrete Input Points | 4 | |
| Nominal Discrete Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Points per Discrete Input Common | 4 | |
| Number of Discrete Output Points | 1 | |
| Nominal Discrete Output Voltage | 250 VAC | |
| Discrete Output Type | Relay | |
| Relay Configuration | (1) Form C (SPDT) relay | |
| Number of Isolated Discrete Output Commons | 1 | |
| Number of Points per Discrete Output Common | 1 | |
| Load Current | 0.5A/point | |
| Fuse Type | User-supplied external fuse | |
| Programming Language | Ladder | |
| Connector Type | Screw terminals | |
| For Use With | 3-phase induction motors | |
| Additional Information | Optional communication and I/O modules available | |
