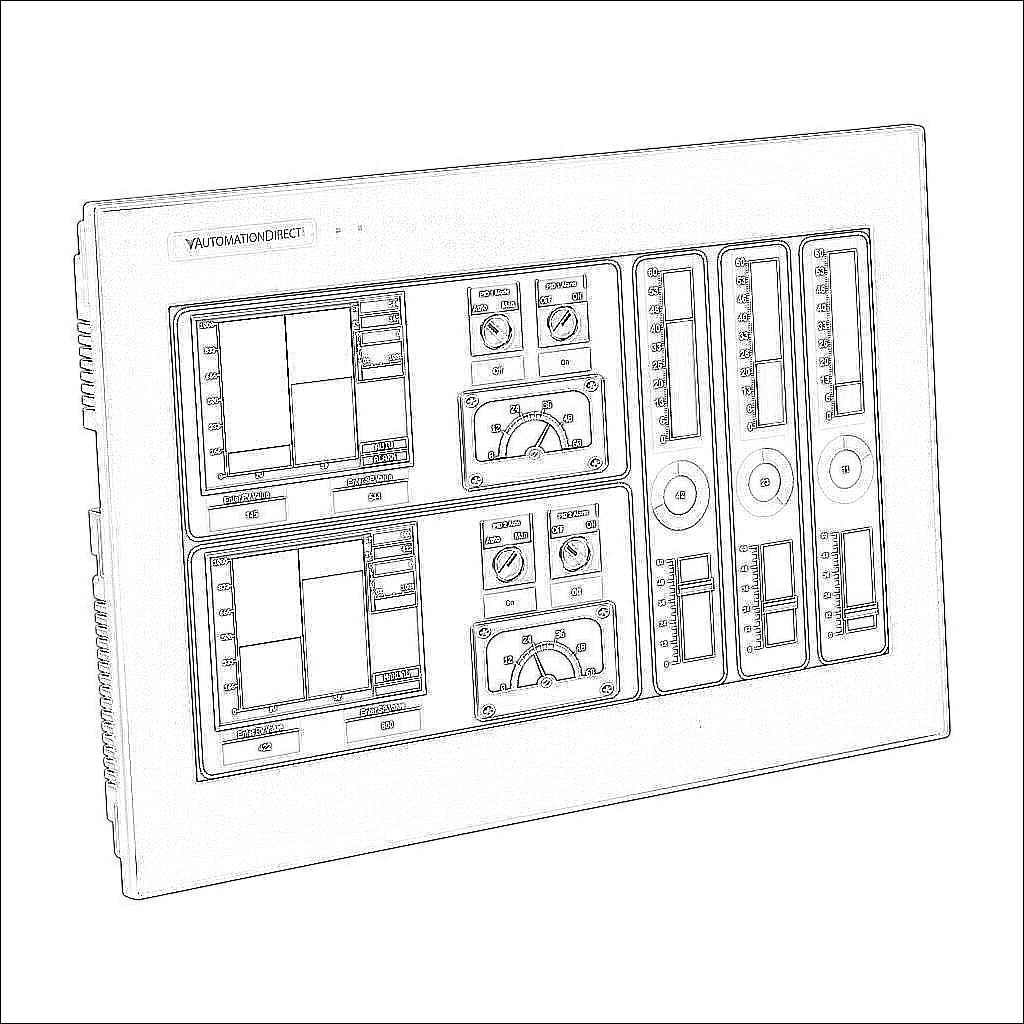

CM5-T15W

CM5-T15W

C-more CM5 series touch screen HMI, 15in color TFT LCD, resistive single-touch, widescreen, 1366 x 768 pixel, HD, LED backlight, (2) Ethernet, (3) serial and (4) USB ports and (1) memory card slot.

$2,011.25
/
Technical Data
BrandC-more
ItemHMI
SeriesCM5
Touch ScreenYes
Display Size15.6in
Viewable Size15.6in
Display TypeColor TFT LCD
WidescreenYes
Display Maximum Colors16.7M colors
Display Resolution1366 x 768 pixel
Display Video StandardHD
Touch Panel TypeResistive single-touch
Brightness280nits
Display OrientationLandscape/portrait
Backlight TypeLED
CPU Clock Speed1.6 GHz quad-core
External Power Requirement12-24 VDC
Housing RatingNEMA 4/4X
Environmental RequirementsIndoor use only
IP RatingIP65
MountingPanel
Communication Port and Connection Type(s)
  • (2) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-232/422/485 (DB15 female)
  • (1) RS-485 (3-pin terminal)
  • (4) USB A
  • (1) USB B
Port Protocol(s)
  • Allen-Bradley DF1 full duplex
  • Allen-Bradley DF1 half duplex
  • Allen-Bradley EtherNet/IP Client
  • Allen-Bradley EtherNet/IP Client (tag-based for ControlLogix)
  • Allen-Bradley EtherNet/IP Server (generic I/O messaging)
  • AutomationDirect CLICK Ethernet
  • AutomationDirect CLICK serial
  • AutomationDirect DirectLOGIC K-Sequence
  • AutomationDirect DirectLOGIC DirectNET
  • AutomationDirect DirectLOGIC Ethernet
  • AutomationDirect Do-more/BRX serial
  • AutomationDirect Do-more/BRX Ethernet
  • AutomationDirect ECOM Ethernet
  • AutomationDirect GS drives serial
  • AutomationDirect GS drives Ethernet
  • AutomationDirect Productivity Series Ethernet
  • AutomationDirect Productivity Series serial
  • AutomationDirect SOLO temperature controller
  • AutomationDirect SOLO modular temperature controller
  • Entivity WinPLC Modbus RTU Master
  • Entivity WinPLC Modbus TCP/IP Client
  • FTP Client/Server
  • GE SNPX (90/30, 90/70, Micro 90, Versa Max Micro)
  • GE SRTP (90/30) Ethernet
  • GE SRTP (Fanuc R-30iB) Ethernet
  • Mitsubishi FX Direct
  • Mitsubishi Q
  • Mitsubishi QnA Ethernet
  • Mitsubishi QnA serial
  • Modbus RTU Master
  • Modbus TCP/IP Client
  • MQTT Client
  • MQTTs Client
  • SMTPs Client
  • NTP Client/Server
  • Omron FINS Ethernet
  • Omron FINS serial
  • Omron Host Link
  • Siemens S7-200 Ethernet ISO over TCP
  • Siemens S7-200 Serial-PPI
  • Siemens S7-300/400/1200/1500 Ethernet ISO over TCP
  • webserver (secure HTTPs)
Mobile App EnabledAndroid/iOS Remote HMI App
Port Speed(s)
  • up to 38.4k baud
  • 10/100 Mbps
Removable Media TypeSD card slot
Programming SoftwareCM5-PGMSW programming software v8.0 or later
IncludesMounting hardware, gasket and cutout template
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
