| Technical Data | ||
|---|---|---|
| Brand | NITRA | |

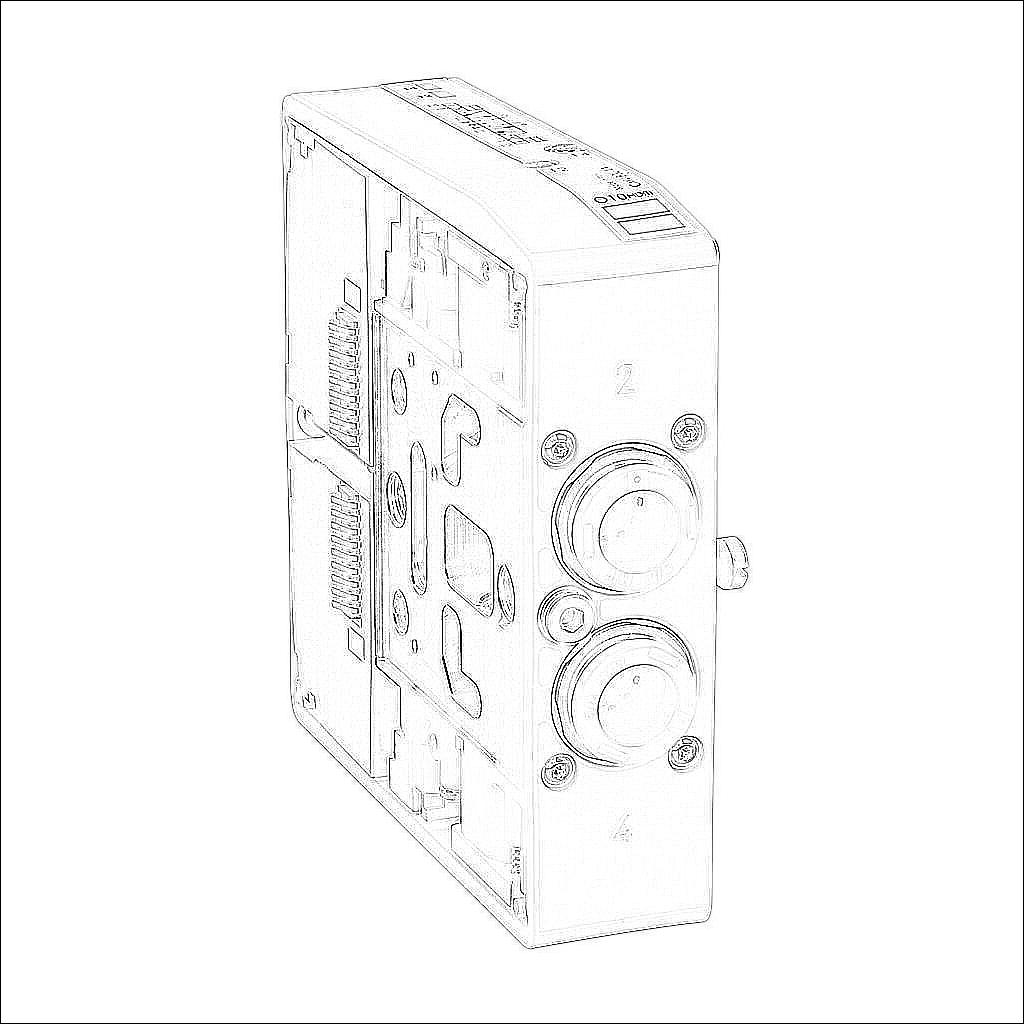

| Item | Valve | |
| Working Fluid | Air | |
| Valve Type | Solenoid directional control | |
| IP Rating | IP65 | |
| Port Quantity | 5-way | |
| Number Of Positions | 3 | |
| Valve Configuration | Center closed | |
| Action | Double solenoid | |
| Body Material | Reinforced technopolymer | |
| Outlet Port | (2) 3/8in push-to-connect | |
| Manual Override Type | Locking | |
| Flow Coefficient | 0.5 | |
| Operating Voltage | 24 VDC | |
| Indicating Type | LED indication | |
| Form Factor | Compact modular | |
| Requires | One CMV series left end plate and right end plate for any combination of one to sixteen solenoids | |
| Additional Information | Valve uses two of the available 16 wiring positions on the inlet plate | |
