CMV-E2X-4X

CMV-E2X-4X

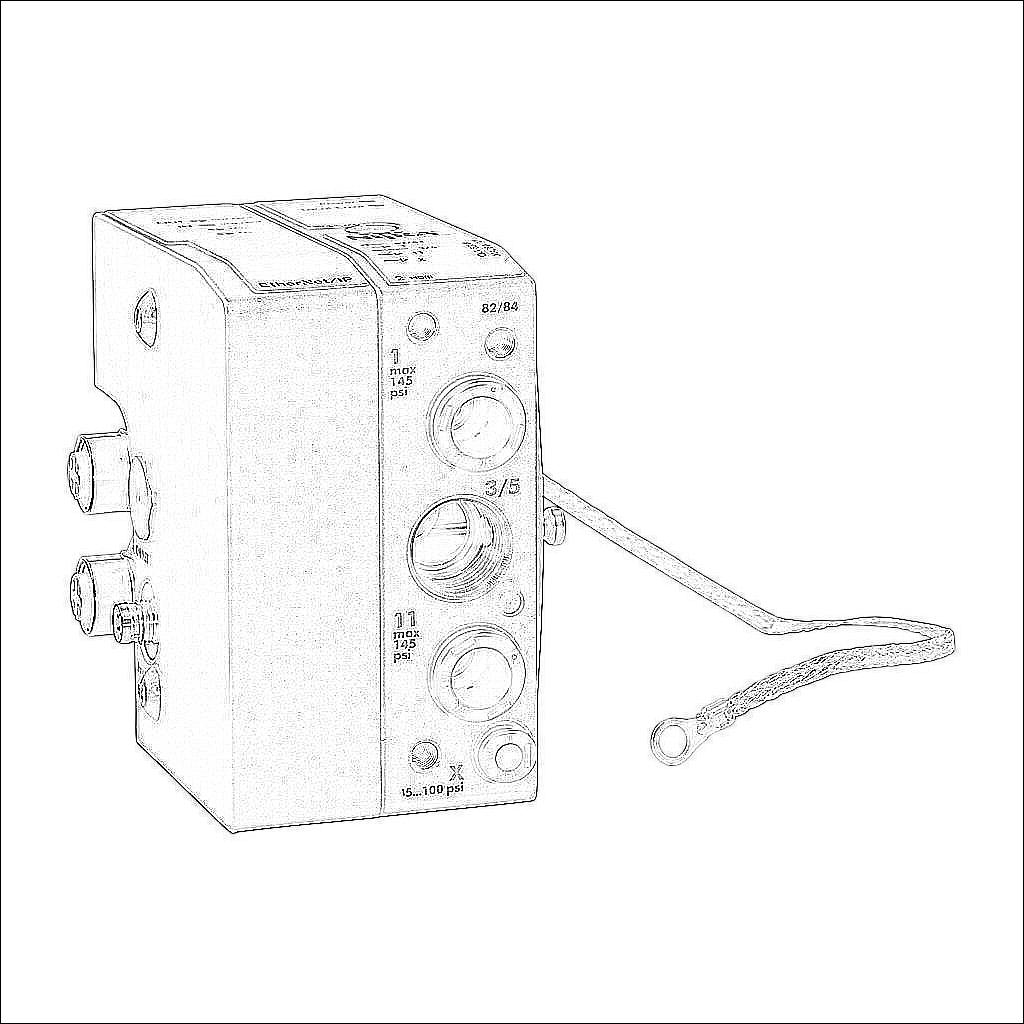

NITRA pneumatic EtherNet/IP protocol modular plate, left supply/exhaust end, Cv=12.4, (2) 3/8in push-to-connect inlet(s), 3/8in female NPT exhaust(s), 5/32in (4mm) push-to-connect pilot(s), anodized aluminum body, IP65.

$937.50
/
Technical Data
BrandNITRA
ItemEtherNet/IP protocol modular plate
Working FluidAir or inert gas
Pneumatic FunctionLeft supply/exhaust end
Flow Coefficient12.4
Inlet Port(2) 3/8in push-to-connect
Exhaust Port3/8in female NPT
Pilot Port5/32in (4mm) push-to-connect
Body MaterialAnodized aluminum
IP RatingIP65
Electrical Connection(2) 5-pin M12 and (1) 4-pin M8 quick-disconnect
For Use WithCMV series solenoid valves
Requires4-pin M8 power cable
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
