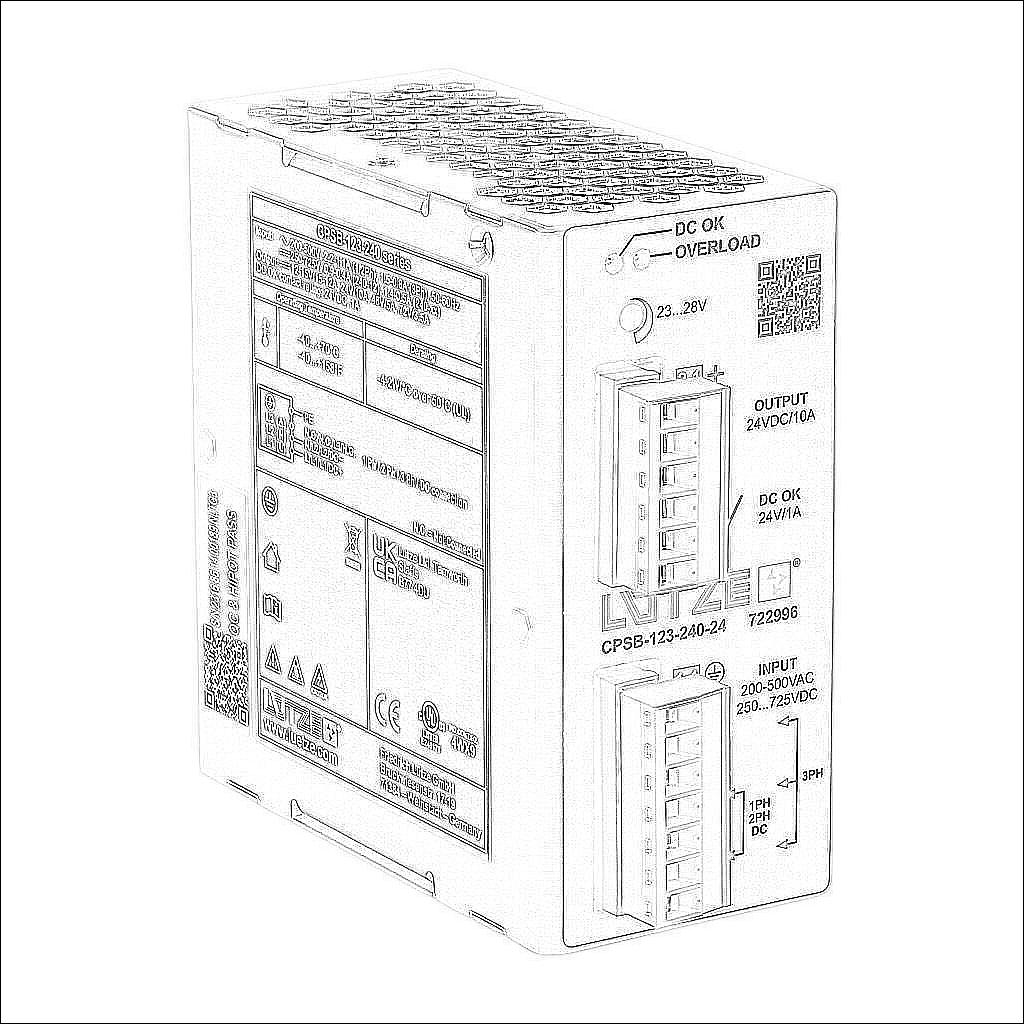

CPSB-123-240-24

CPSB-123-240-24

LUTZE CPS Universal series switching power supply, 24 VDC @ 10A/240W, 220/480 VAC nominal input, 1, 2 and 3-phase, enclosed, aluminum housing, 35mm DIN rail mount, screw terminals.

$287.50
/
Technical Data
BrandLUTZE
ItemPower supply
SeriesCPS Universal
Power Supply TypeSwitching
Efficiency93% @ 240 VAC
Output ConfigurationSingle output
Output220/480 VAC @ 10A/240W
Output Voltage Range23-28 VDC
Input voltage range187-550 VAC/250-725 VDC
Input Voltage Selection TypeAutomatic
Number of Input Phases1, 2 and 3
Protection Type(s)
  • overvoltage
  • overcurrent
  • short circuit
  • over-temperature
Remote On/OffNo
Enclosure TypeEnclosed
Housing MaterialAluminum
IP RatingIP20
Mounting35mm DIN rail
Connector TypeScrew terminals
Integrated UPS Battery ControlNo
Operating Temperature-40 to +70 deg C
Power Boost150% for 5s
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
