CPSB1-240-24E

CPSB1-240-24E

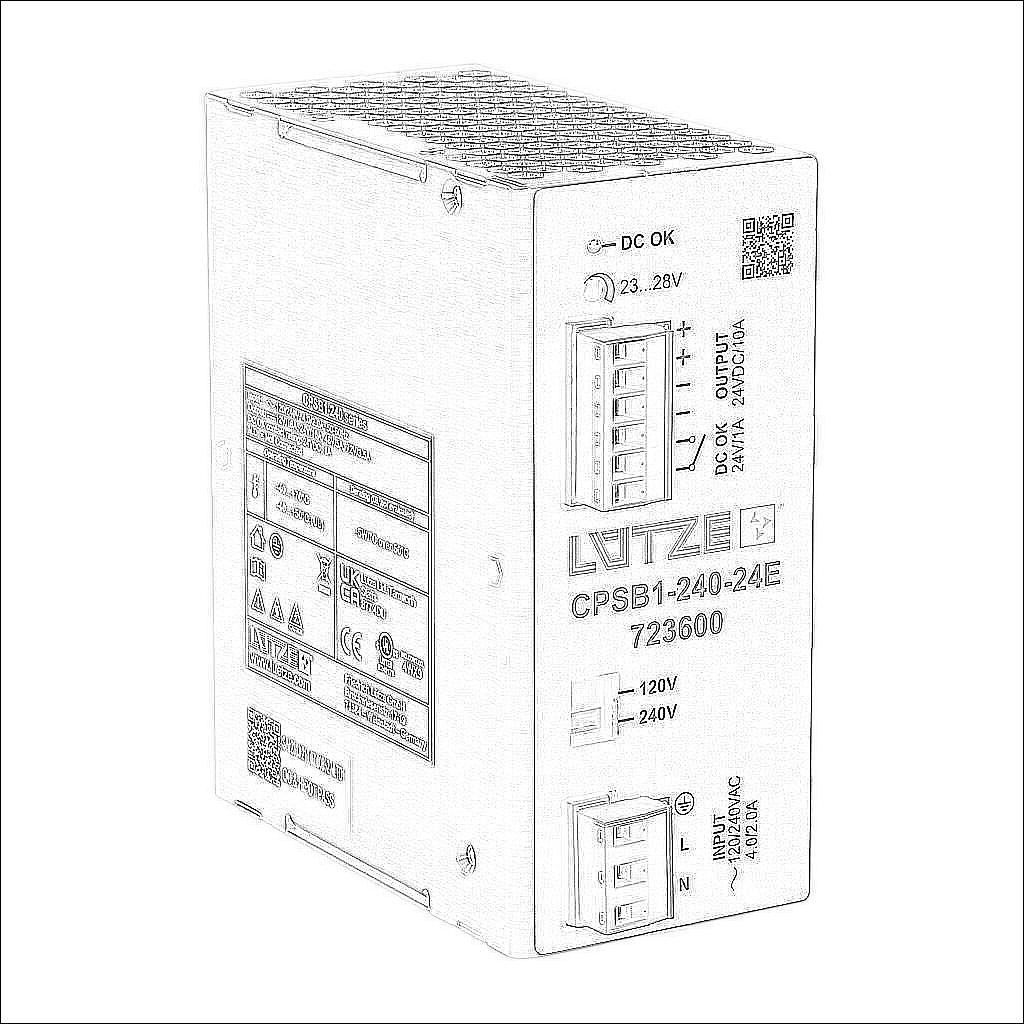

LUTZE CPS Eco series switching power supply, 24 VDC @ 10A/240W, 120/240 VAC nominal input, 1-phase, enclosed, aluminum housing, 35mm DIN rail mount, screw terminals.

$187.50
/
Technical Data
BrandLUTZE
ItemPower supply
SeriesCPS Eco
Power Supply TypeSwitching
Efficiency87% @ 120 VAC
Output ConfigurationSingle output
Output120/240 VAC @ 10A/240W
Output Voltage Range23-27.5 VDC
Input voltage range90-132/187-264 VAC/270-345 VDC
Input Voltage Selection TypeSwitch
Number of Input Phases1
Protection Type(s)
  • overvoltage
  • overcurrent
  • short circuit
  • over-temperature
Remote On/OffNo
Enclosure TypeEnclosed
Housing MaterialAluminum
IP RatingIP20
Mounting35mm DIN rail
Connector TypeScrew terminals
Integrated UPS Battery ControlNo
Operating Temperature-40 to +70 deg C
Power Boost135% for 30s
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
