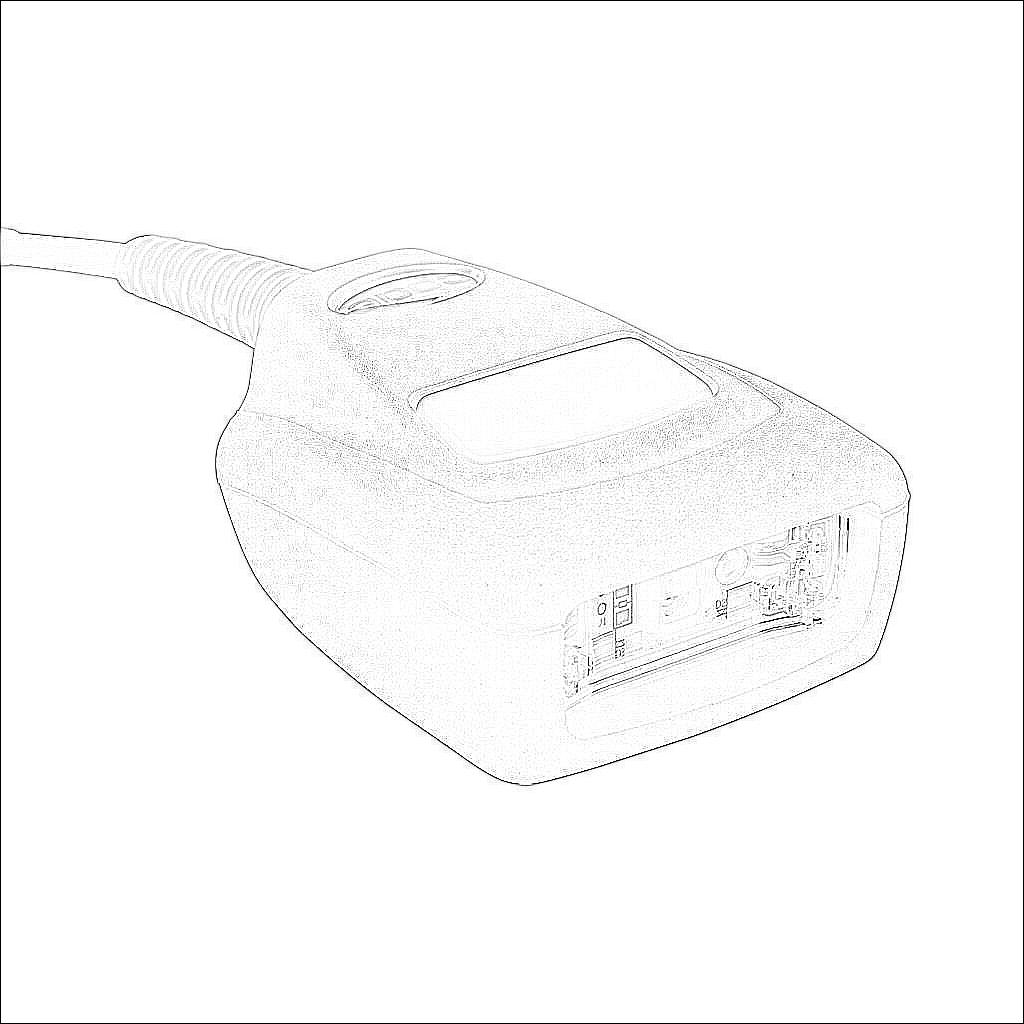

CR1100-K201-C298

Code barcode scanner, 1D and 2D, imager, corded, USB, general duty, dual 960 x 640 optical resolution. 6ft USB cable included.

		Technical Data
	Brand	Code
	Item	Barcode scanner
	Form Factor	Handheld and presentation
	Scanner Capability	1D and 2D
	Scanner Type	Imager
	Connectivity	Corded
	Connection	USB
	Duty Rating	General duty
	Optical Resolution	Dual 960 x 640
	Decode Capability	1D: BC412, Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1D: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 2D: Aztec Code, Data Matrix, Data Matrix Rectangular Extension, Grid Matrix, Han Xin, Maxicode, Micro QR Code, QR Code, QR Model 1 Postal: Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Post-net, UK Royal Mail, UPU ID-tags
	Field Of View	High Density: 30 degree horizontal by 20 degree vertical and Wide Field: 50 degree horizontal by 33.5 degree vertical
	Shock Rating	Multiple drops of 6ft on concrete
	Operating Temperature	-20 to +50 deg C (-4 to 122 deg F)
	Includes	6ft USB cable

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
