| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

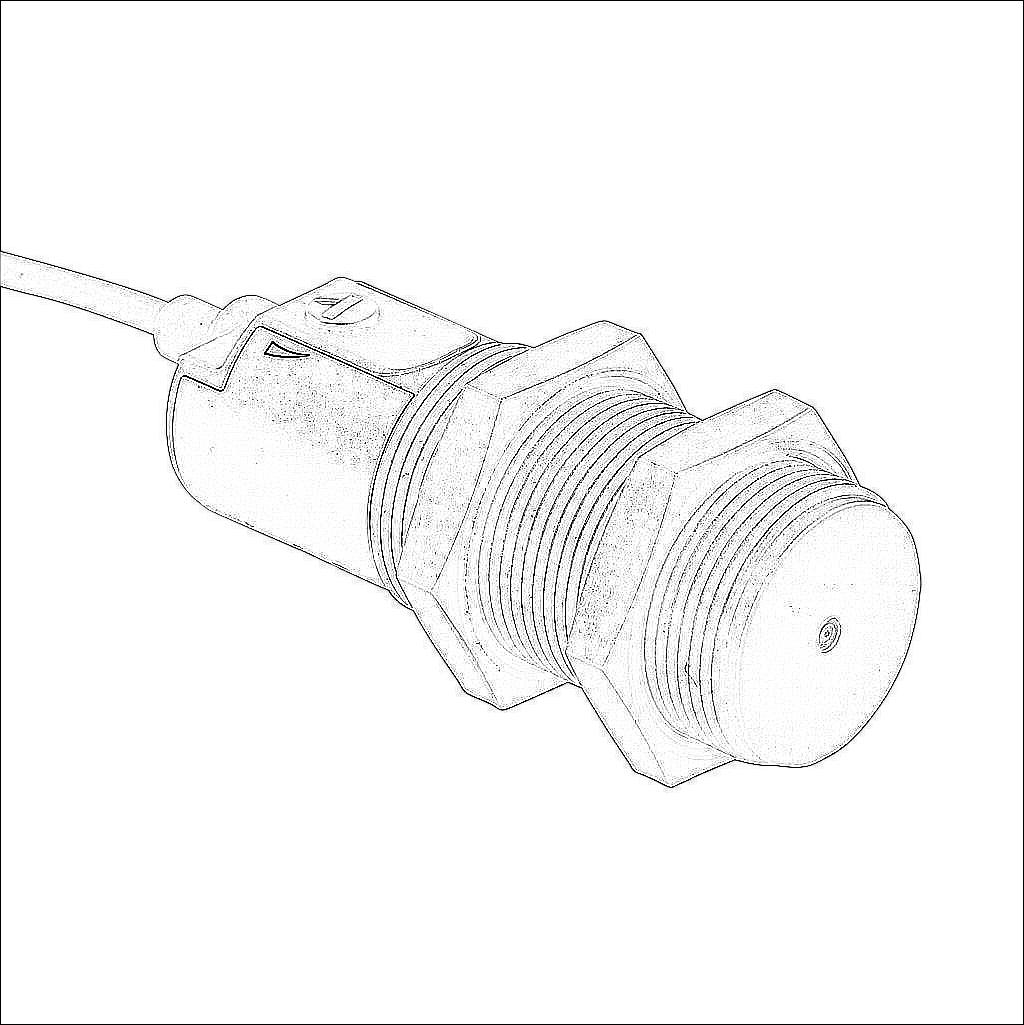

| Item | Proximity sensor | |
| Sensor Type | Capacitive | |
| Shape | Tubular | |
| Housing Size | 30mm diameter x 92mm body | |
| Housing Material | Polybutylene terephthalate | |
| Barrel Type | Threaded | |
| Adjustable | Yes | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.O. output | |
| Sensing Distance | 15mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 40 Hz | |
| Operating Voltage | 10-30 VDC | |
| IP Rating | IP65 IP67 IP69K | |
| Connection | Pigtail | |
| Conductor Size | 22 AWG | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PUR | |
| Includes | Mounting hardware | |
