CTT-AN-A120

CTT-AN-A120

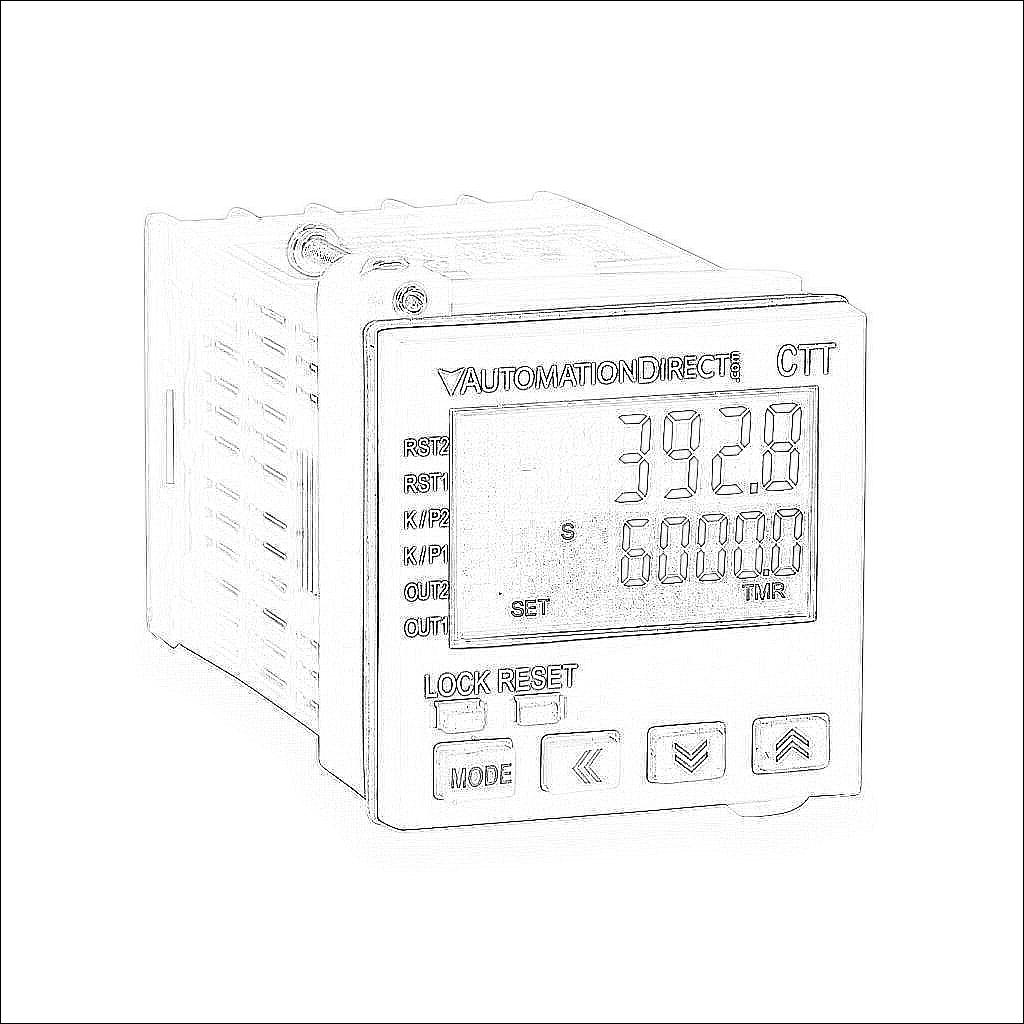

AutomationDirect multi-function digital counter/timer/tachometer, two-line, 6-digit, two-color LCD, fully selectable timing range, 100-240 VAC operating voltage, (1) concurrent NPN transistor and SPST relay and (1) NPN transistor output(s), 1/16 DIN mount.

$155
/
Technical Data
BrandAutomationDirect
ItemMulti-function digital counter/timer/tachometer
Display TypeTwo-line, 6-digit, two-color LCD
Timing RangeFully selectable
Operating Voltage100-240 VAC
Timer Output Type(s)(1) concurrent NPN transistor and SPST relay and (1) NPN transistor
Timer Function(s)
  • signal on-delay 1
  • signal on-delay 2
  • signal off-delay
  • signal on
  • power on-delay
  • power on-delay hold
  • repeat cycle
  • repeat cycle 2
  • repeat cycle hold
  • signal cumulate
  • signal twin on-start
  • signal twin off-start
Mounting1/16 DIN
Connector TypeScrew terminal(s)
IncludesPanel mounting clip
Additional InformationOperates in one of four modes (selectable) - Counter (5 functions), Timer (12 functions), mixed Timer + Counter, or Tachometer
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
