| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |

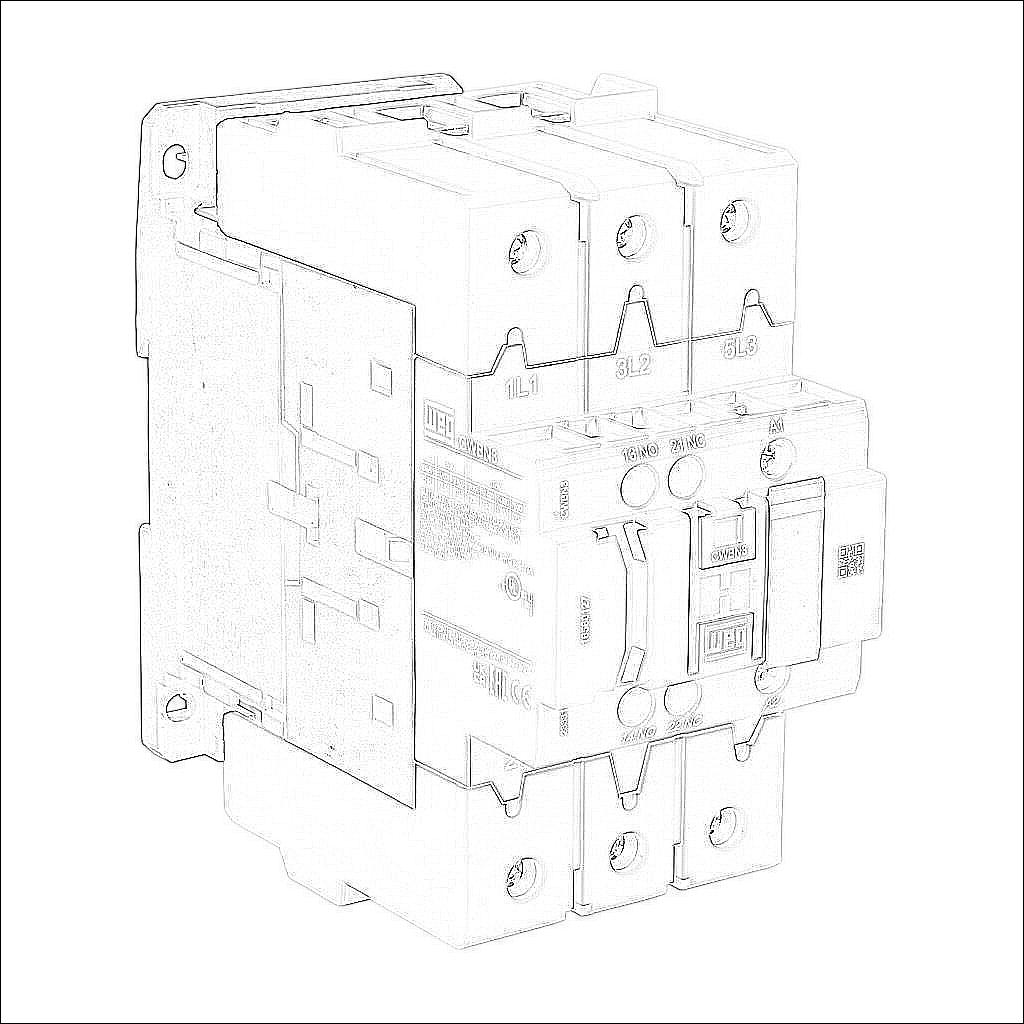

| Item | Contactor | |
| Series | CWBN | |
| Contactor Type | IEC | |
| Actuator Type | Magnetic | |
| Reversing | No | |
| NEMA Size | 3 | |
| Amperage Rating | 95A | |
| Power Poles | (3) N.O. | |
| Auxiliary Contacts | (1) N.O./(1) N.C. | |
| Coil Voltage | 110-255 VAC/VDC | |
| Coil Type | Electronic | |
| Horsepower Rating | 60hp | |
| SCCR Rating | 5kA SCCR | |
| UL Rating | UL 60947 rated | |
| Mounting | 35mm DIN rail or panel | |
