| Technical Data | ||
|---|---|---|
| Brand | AutomationDirect | |

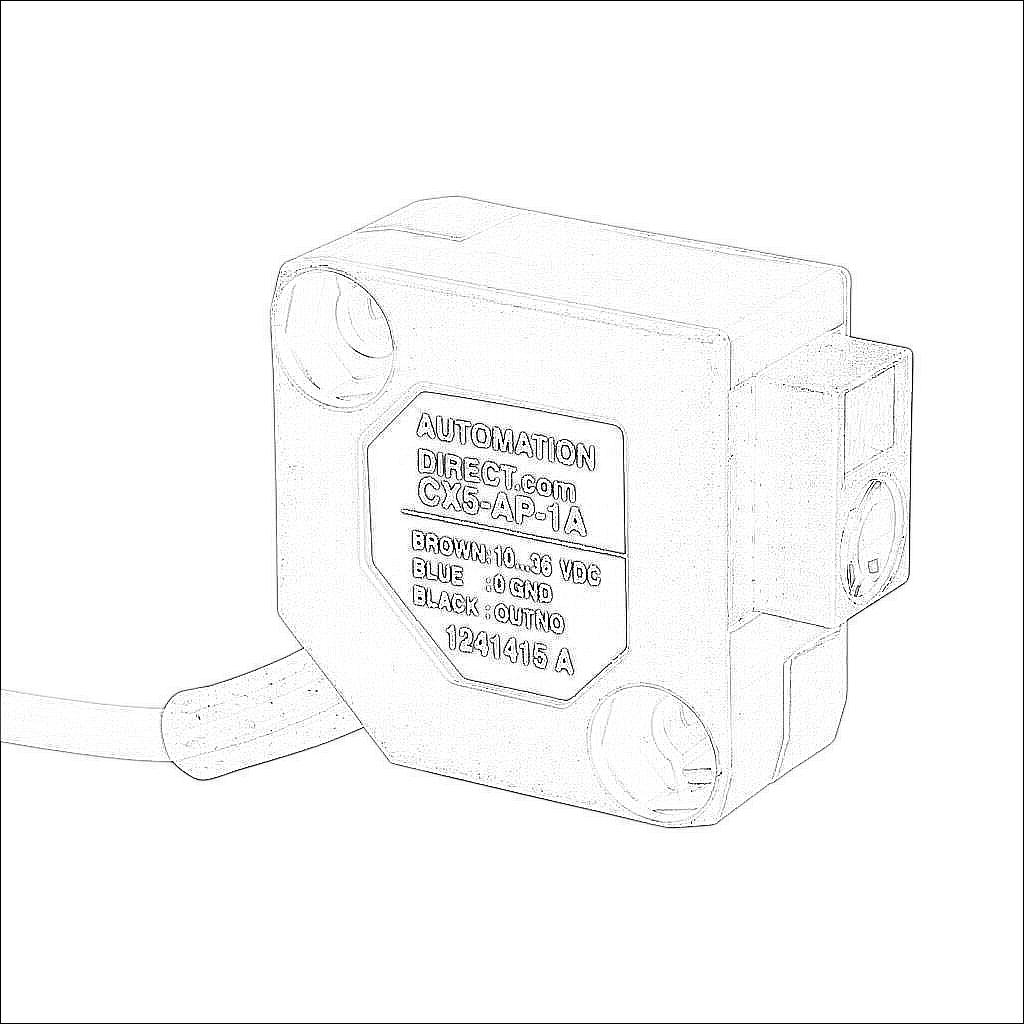

| Item | Photoelectric sensor | |
| Shape | Rectangular | |
| Housing Size | 30 x 15 x 30mm | |
| IP Rating | IP65 | |
| Application | Standard duty | |
| Housing Material | Plastic | |
| Sensing Method | Diffuse with background suppression | |
| Operating Voltage | 10-36 VDC | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Sensing Distance | 15-150mm | |
| Sensitivity | Potentiometer | |
| Operation Mode | Light-on | |
| Switching Frequency | 500 Hz | |
| Light Emission | Visible red | |
| Cable Length | 6.5ft/2m | |
| Connection | Pigtail | |
| Conductor Size | 26 AWG | |
