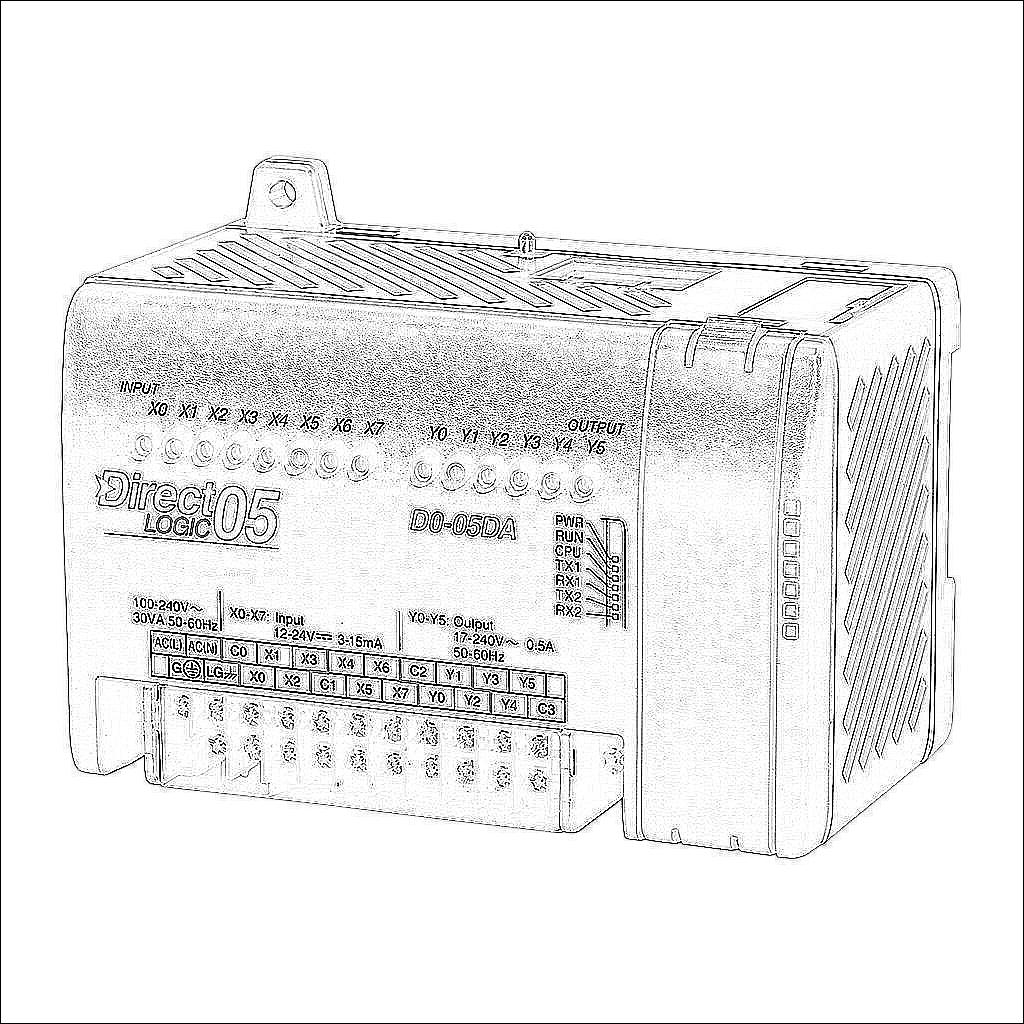

D0-05DA

DirectLOGIC DL05 PLC, 120-240 VAC required, serial ports, Discrete Input: 8-point, DC, Discrete Output: 6-point, triac.

$341.25

		Technical Data
	Brand	DirectLOGIC
	Item	PLC
	Series	DL05
	Total Memory	6k words
	Ladder Memory	2k words
	User Data Memory	4k words
	Programming Language	Ladder
	Programming Software	DirectSOFT programming software v4.0 or later
	Communication Port and Connection Type(s)	(2) RS-232 (RJ12)
	Port Protocol(s)	DirectNET Modbus RTU K-sequence programming and monitoring
	Port Speed(s)	fixed at 9.6k baud up to 38.4k baud
	Real Time Clock/Calendar	No
	Retentive Memory	No
	Battery Backup	No
	Maximum Expansion Modules Allowed	1
	External Power Requirement	120-240 VAC
	Number of Discrete Input Points	8
	Nominal Input Voltage	12-24 VDC
	Voltage Type	DC
	Discrete Input Type	Sinking/sourcing
	Number of Isolated Discrete Input Commons	2
	Number of Points per Discrete Input Common	4
	Frequency Response	5 kHz
	Number of Discrete Output Points	6
	Nominal Output Voltage	24-240 VAC
	Discrete Output Type	Triac
	Load Current	0.5A/point
	Number of Isolated Discrete Output Commons	2
	Number of Points per Discrete Output Common	3
	Maximum Number of PID Loops	4
	Number of High-Speed Capable Input Points	3
	High-Speed Counter(s)	up to (1) up counter up to (1) quadrature (A and B) counter
	Position Scaling	up to (1) up counter up to (1) quadrature (A and B) counter
	Frequency Measurement	up to (1) up counter up to (1) quadrature (A and B) counter
	Interrupt(s)	up to (1) input interrupt up to (1) timer interrupt
