| Technical Data | ||
|---|---|---|
| Brand | DirectLOGIC | |

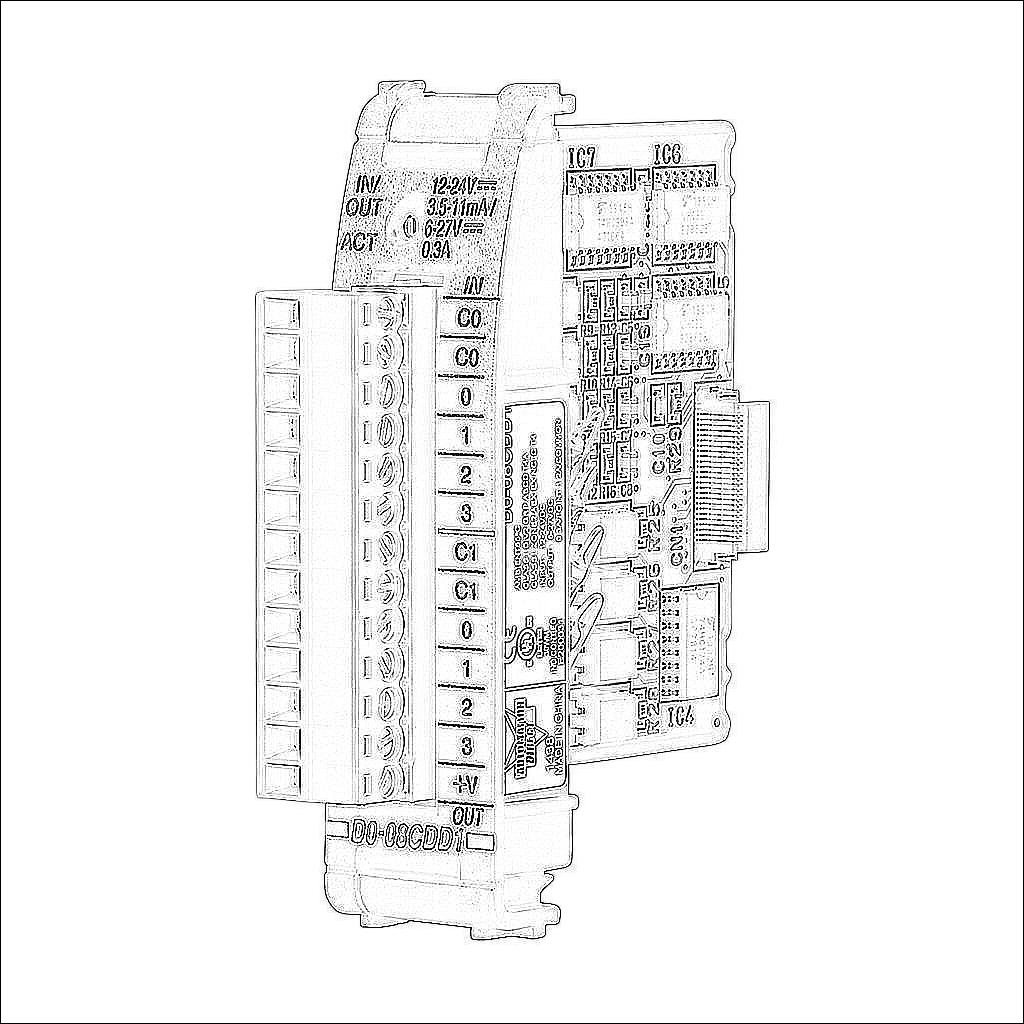

| Item | Combo module | |
| I/O Module Type | Discrete | |
| Series | DL05/06 | |
| Number of Input Points | 4 | |
| Nominal Input Voltage | 12-24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 2 | |
| Number of Output Points | 4 | |
| Nominal Output Voltage | 6-24 VDC | |
| Discrete Output Type | Sinking | |
| Number of Non-Isolated Discrete Output Commons | 2 | |
| Load Current | 0.3A/point, 1.2A/module | |
| Fuse Type | User-supplied external fuse | |
| Programming Software | DirectSOFT programming software v4.0 or later | |
