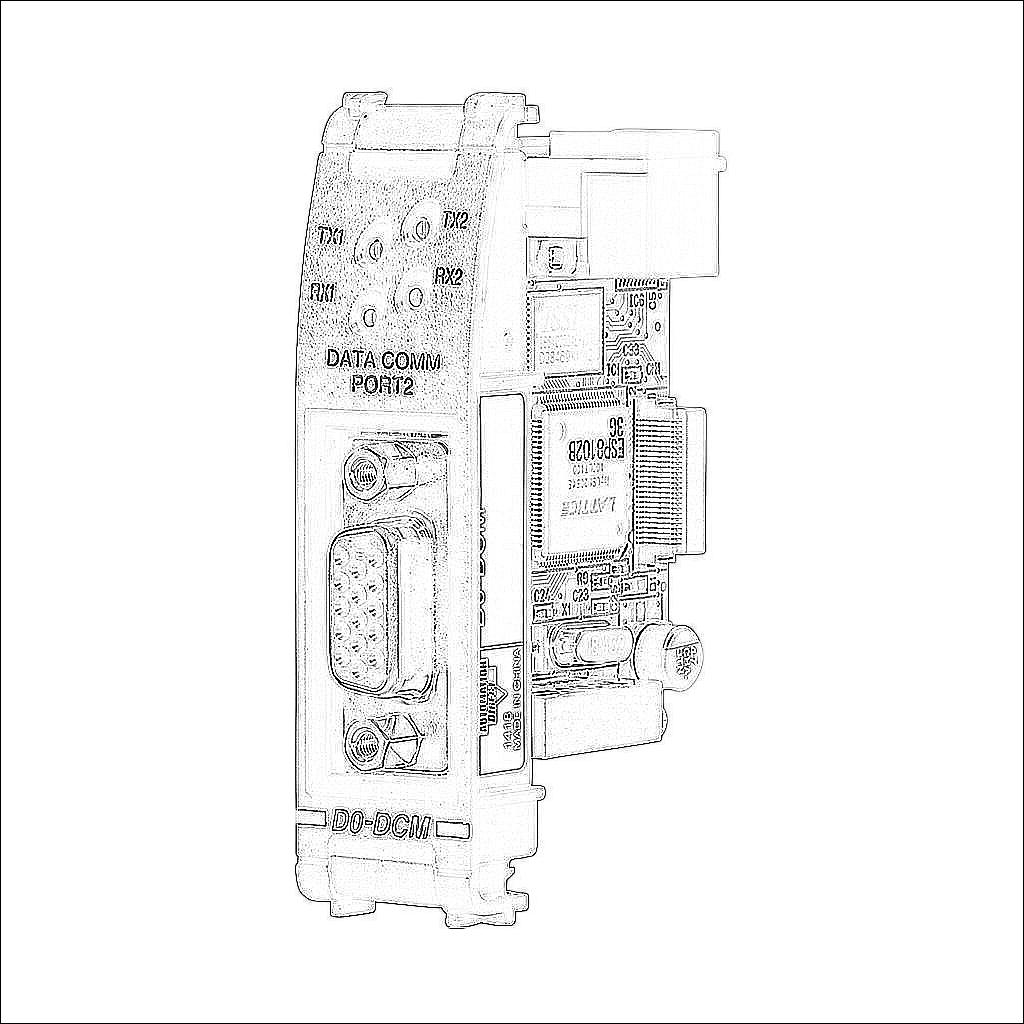

D0-DCM

D0-DCM

DirectLOGIC DL05/06 communication module, DirectNET and Modbus RTU, 2 ports, (1) RS-232 (RJ12) and (1) RS-232/RS-422/RS-485 (HD15) port(s). For use with DL05 and DL06 PLCs.

$377.50
/
Technical Data
BrandDirectLOGIC
ItemCommunication module
SeriesDL05/06
Number of Ports2
Buffered PortsNo
Communication Port and Connection Type(s)
  • (1) RS-232 (RJ12)
  • (1) RS-232/RS-422/RS-485 (HD15)
Port Protocol(s)
  • DirectNET Master/Slave
  • Modbus RTU Master/Slave
  • K-sequence Slave
Port Speed(s)
  • up to 115.2k baud
For Use WithDL05 and DL06 PLCs
Programming SoftwareDirectSOFT programming software v4.0 or later
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
