| Technical Data | ||
|---|---|---|
| Brand | DirectLOGIC | |

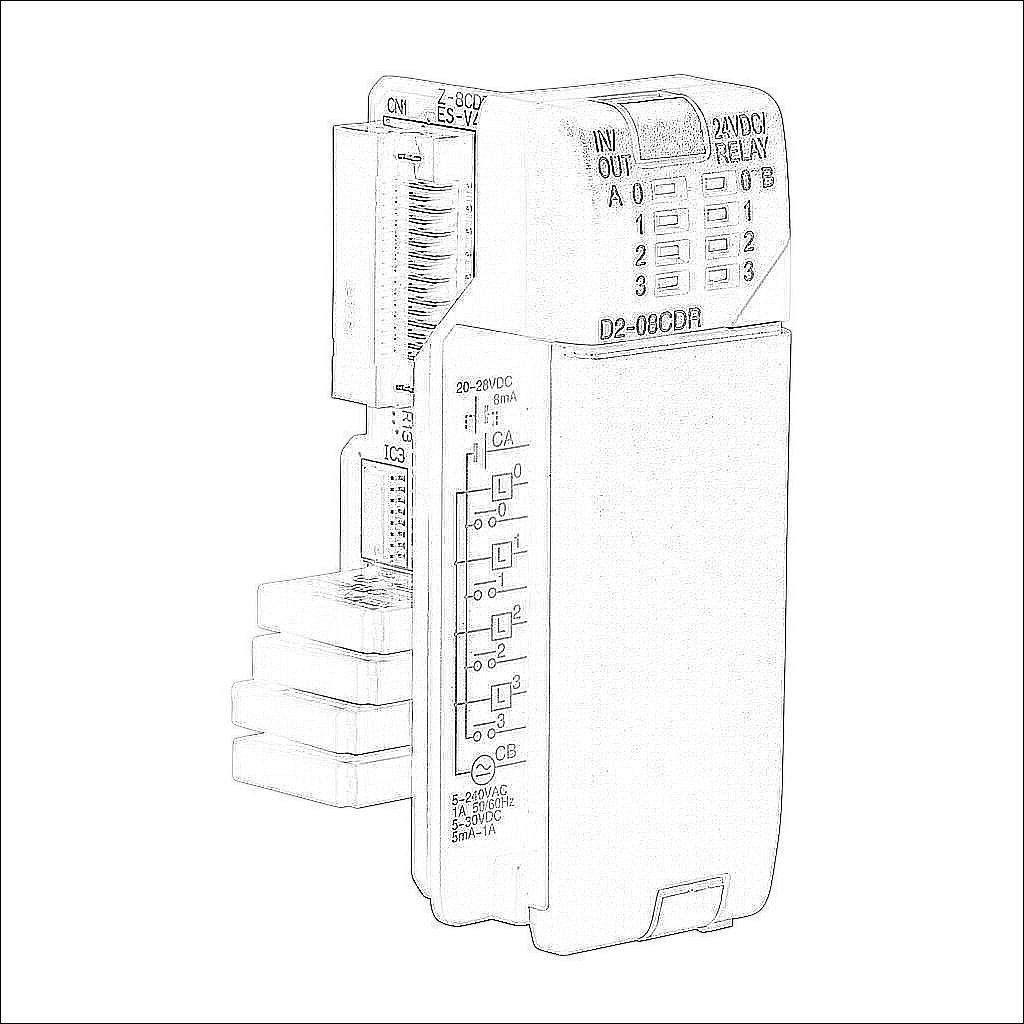

| Item | Combo module | |
| I/O Module Type | Discrete | |
| Series | DL205 | |
| Number of Input Points | 4 | |
| Nominal Input Voltage | 24 VDC | |
| Discrete Input Type | Sinking/sourcing | |
| Number of Non-Isolated Discrete Input Commons | 1 | |
| Number of Output Points | 4 | |
| Nominal Output Voltage | 6-24 VDC/6-240 VAC | |
| Relay Configuration | (1) Form A (SPST) relay | |
| Number of Non-Isolated Discrete Output Commons | 1 | |
| Load Current | 1A/point, 4A/module | |
| Fuse Type | Replaceable fuse | |
| Programming Software | DirectSOFT programming software v4.0 or later | |
