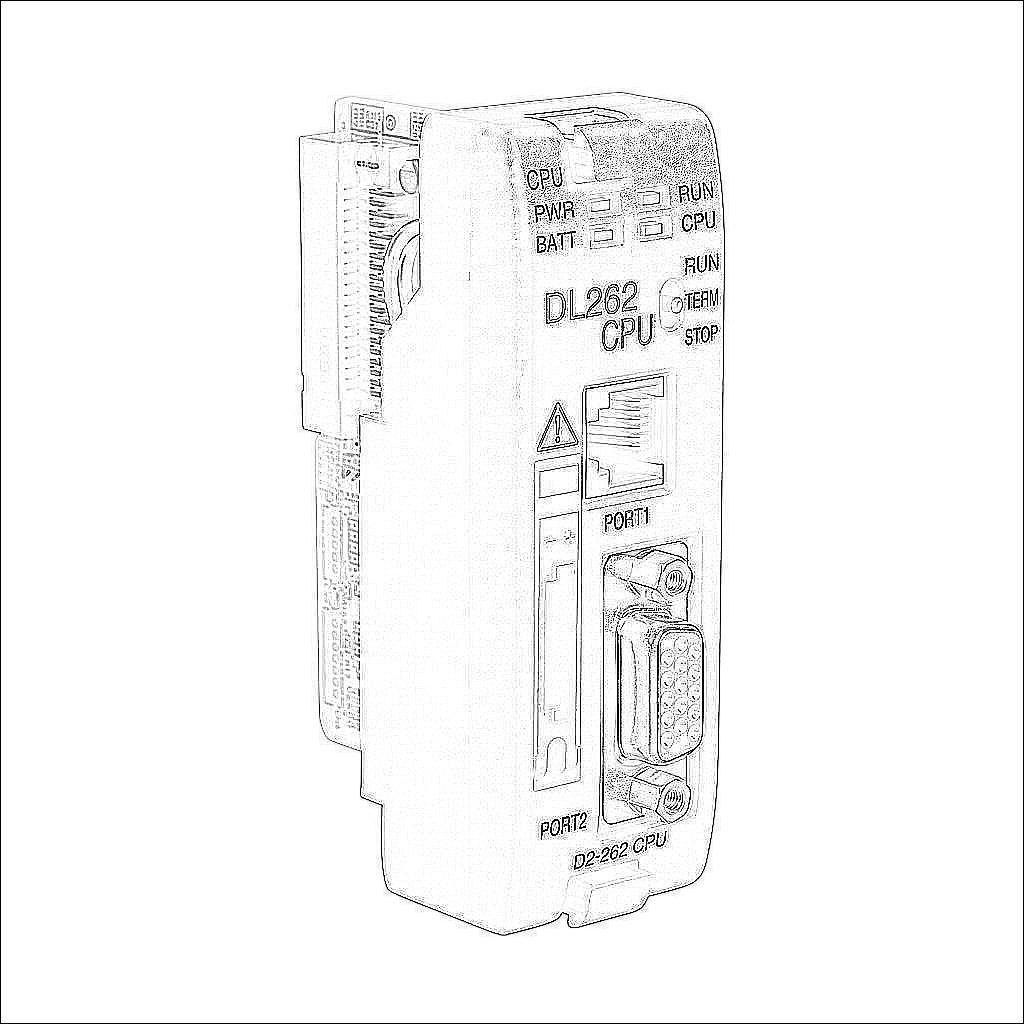

D2-262

D2-262

DirectLOGIC DL205 CPU, 15.8k words ladder memory, (1) RS-232 (RJ12) and (1) RS-232/RS-422/RS-485 (DB15HD female) port(s). Purchase D2-BAT-1 backup battery separately.

$645
/
Technical Data
BrandDirectLOGIC
ItemCPU
SeriesDL205
Total Memory30.4k words
Ladder Memory15.8k words
User Data Memory14.6k words
Programming LanguageLadder
Programming SoftwareDirectSOFT programming software v6.3 or later
Communication Port and Connection Type(s)
  • (1) RS-232 (RJ12)
  • (1) RS-232/RS-422/RS-485 (DB15HD female)
Port Protocol(s)
  • DirectNET
  • Modbus RTU
  • ASCII
  • K-sequence
  • serial remote I/O
  • programming and monitoring
Port Speed(s)
  • fixed at 9.6k baud
  • up to 38.4k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Number of PID Loops16
Additional InformationPurchase D2-BAT-1 backup battery separately
