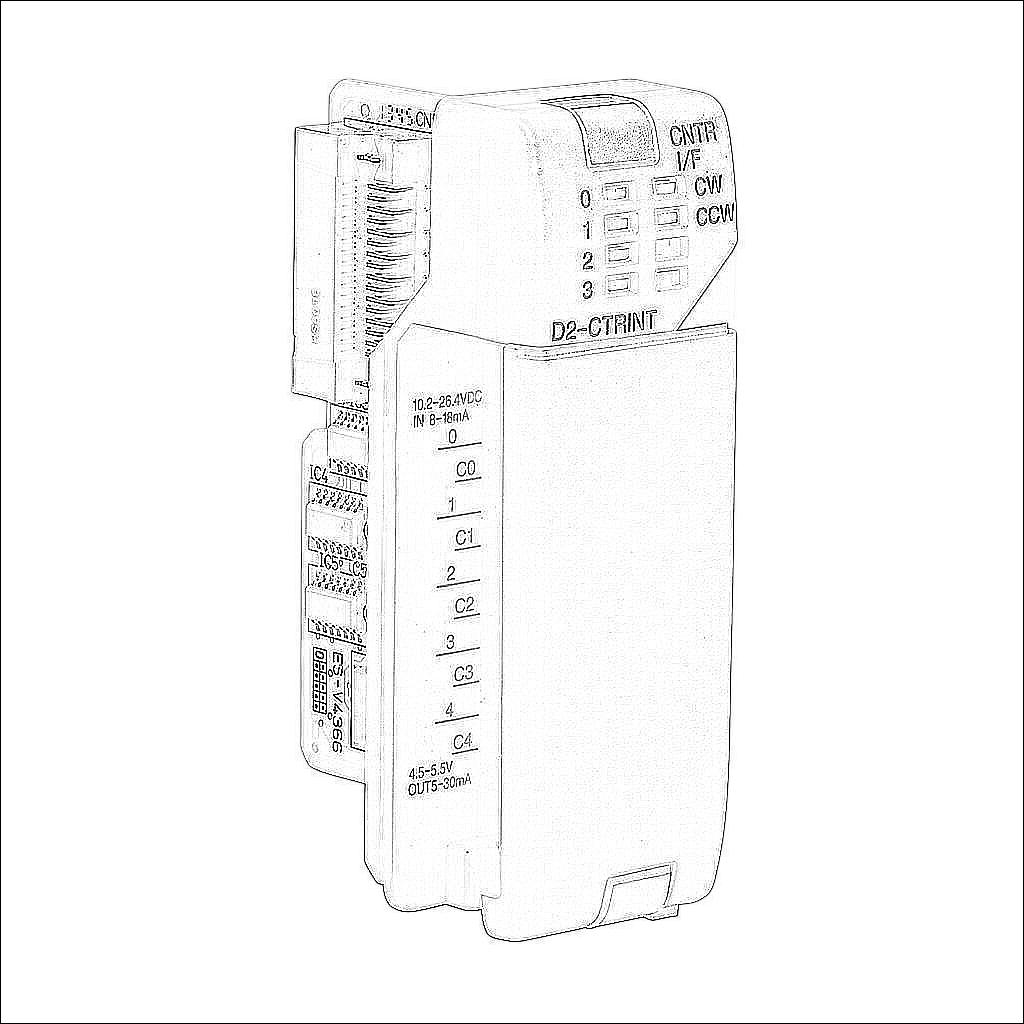

DirectLOGIC DL205 pulse combo module, 5 kHz maximum switching frequency, 4 high-speed input point(s), sinking/sourcing, single-ended encoder input(s), 2 high-speed output point(s), sinking, single-ended output(s).

$186.25
/
Technical Data
BrandDirectLOGIC
ItemCombo module
I/O Module TypePulse
SeriesDL205
Maximum Switching Frequency5 kHz
Number of High-Speed Capable Input Points4
Nominal Input Voltage12-24 VDC
Discrete Input TypeSinking/sourcing
Number of Non-Isolated Input Commons4
Number of Isolated Input Commons4
Number of Input Channels4
Encoder Input Type
  • push-pull (totem)
Number of High-Speed Capable Output Points2
Nominal Output Voltage5 VDC
Discrete Output TypeSinking
Number of Non-Isolated Output Commons2
Load Current30 mA/point
Number of Output Channels2
Pulse Output Channel Type
  • NPN open collector
  • PNP open collector
  • push-pull (totem)
High-Speed Counter(s)
  • up to (2) up counters
  • up to (1) down counter
  • up to (1) up/down counter
  • up to (1) quadrature (A and B) counter
Position Scaling
  • up to (2) up counters
  • up to (1) down counter
  • up to (1) up/down counter
  • up to (1) quadrature (A and B) counter
Frequency Measurement
  • up to (2) up counters
  • up to (1) down counter
  • up to (1) up/down counter
  • up to (1) quadrature (A and B) counter
Interrupt(s)
  • up to (4) input interrupts
  • up to (4) timer interrupts
Output Pulse Mode(s)
  • up to (1) PTO linear step/direction output
  • up to (1) PTO rotary clockwise/counter-clockwise (CW/CCW) output
Axis Profile(s)
  • relative/absolute positioning
  • velocity mode
  • trapezoid
Programming SoftwareDirectSOFT programming software v4.0 or later
