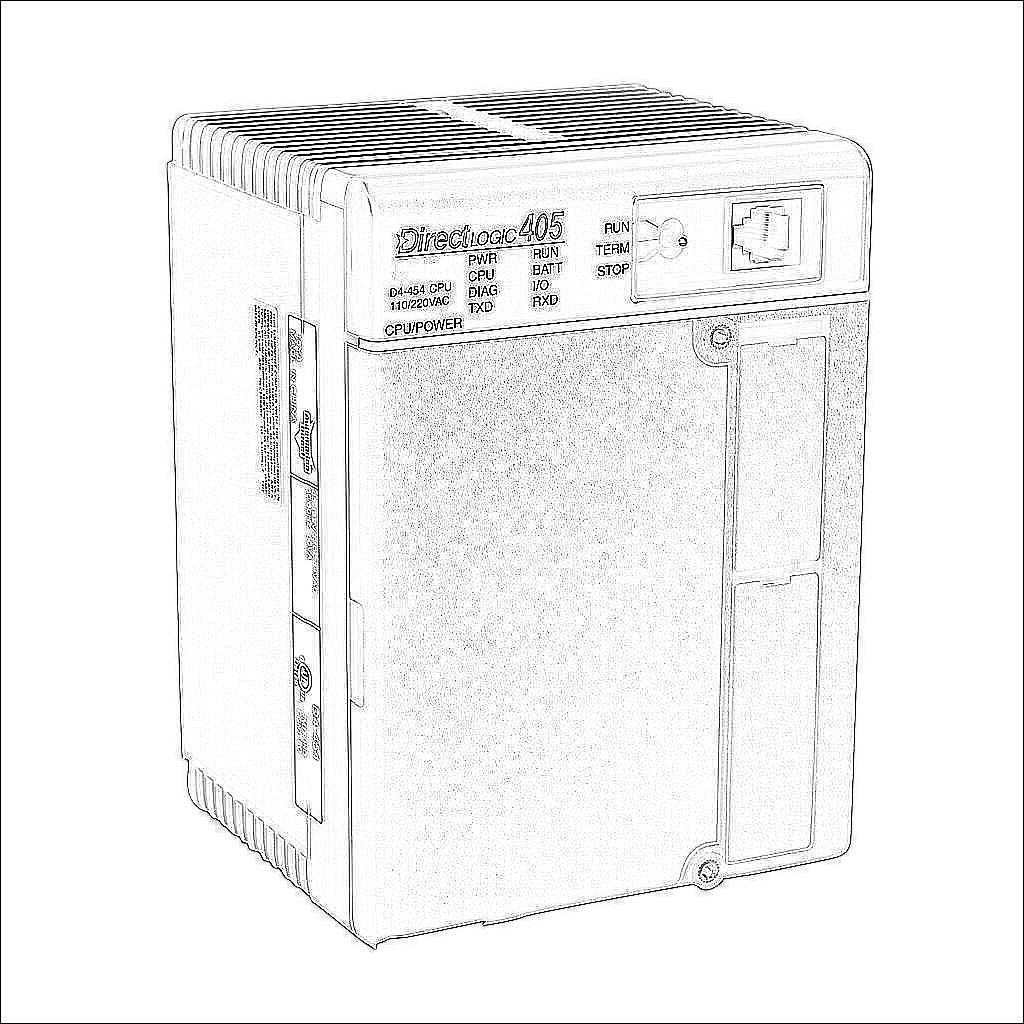

D4-454

D4-454

DirectLOGIC DL405 CPU, 31.5k words ladder memory, (1) RS-232 (DB15), (1) RS-232 (RJ12) and (2) RS-232/RS-422 (DB25) port(s), external 120-240 VAC required, battery included.

$1,693.75
/
Technical Data
BrandDirectLOGIC
ItemCPU
SeriesDL405
Total Memory46.8k words
Ladder Memory31.5k words
User Data Memory7k words
Programming LanguageLadder
Programming SoftwareDirectSOFT programming software v6.1 or later
Communication Port and Connection Type(s)
  • (1) RS-232 (DB15)
  • (1) RS-232 (RJ12)
  • (2) RS-232/RS-422 (DB25)
Port Protocol(s)
  • DirectNET
  • Modbus RTU
  • ASCII Out
  • K-sequence
  • serial remote I/O
  • programming and monitoring
Port Speed(s)
  • fixed at 9.6k baud
  • up to 38.4k baud
Real Time Clock/CalendarYes
Retentive MemoryYes
Battery BackupYes
Maximum Number of PID Loops16
External Power Requirement120-240 VAC
IncludesD2-BAT-1 battery
Dangerous Goods
  • Battery Installed: Yes
  • Packaging Instructions: 970
  • UN Number: UN3091
  • Hazard Type: Lithium Batteries
  • Battery Type: Button
  • Lithium Content: 0.17
  • Replacement Battery: D2-BAT-1
  • Generic Battery: CR2354
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
