| Technical Data | ||
|---|---|---|
| Brand | ProSense | |

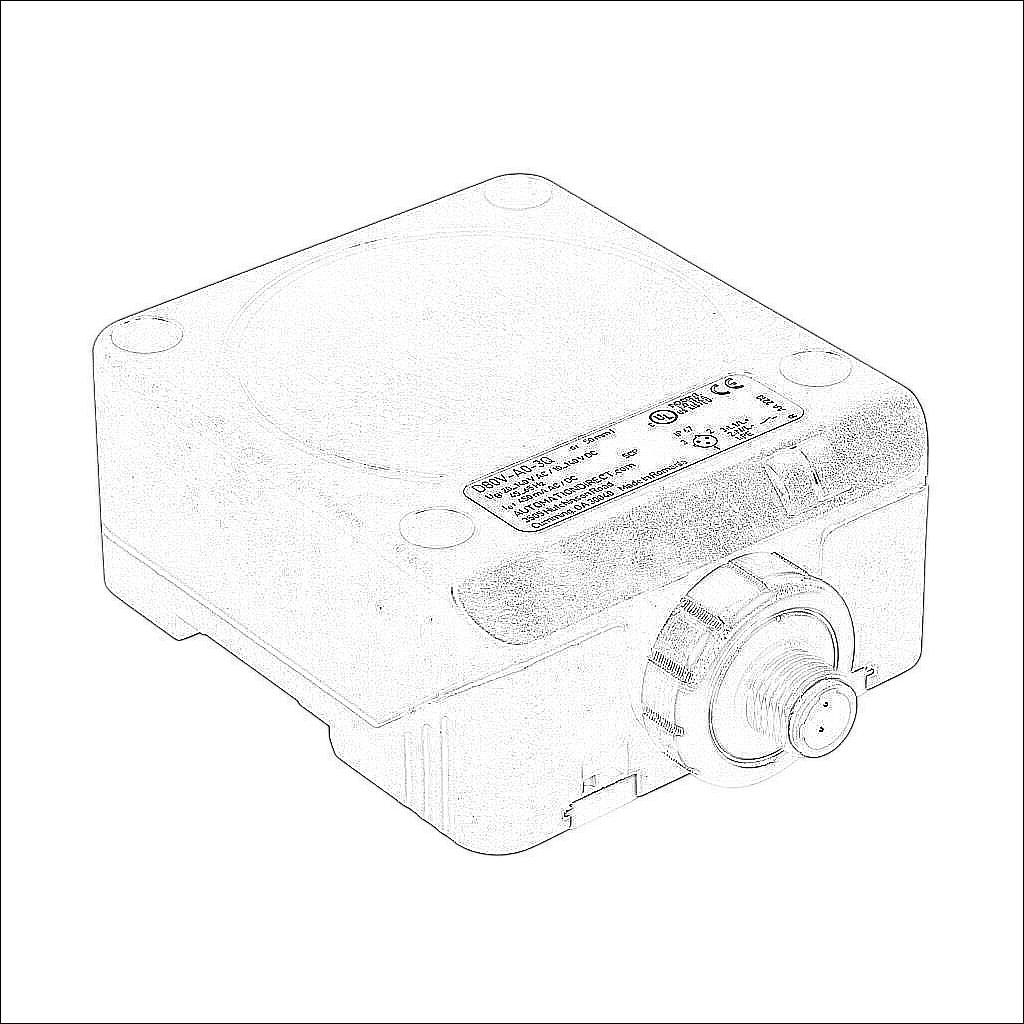

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Standard duty and long range | |
| Shape | Rectangular | |
| Housing Size | 80 x 40 x 92mm body | |
| Housing Material | Polyphenylene ether | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Operation Mode | N.O. output | |
| Sensing Distance | 50mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 25 Hz | |
| Operating Voltage | 20-140 VAC/10-140 VDC | |
| Operating Temperature | -25 to 70 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 3-pin 1/2in - 20UNF thread | |
| Additional Information | Purchase cable separately | |
