| Technical Data | ||
|---|---|---|
| Brand | SureMotion | |

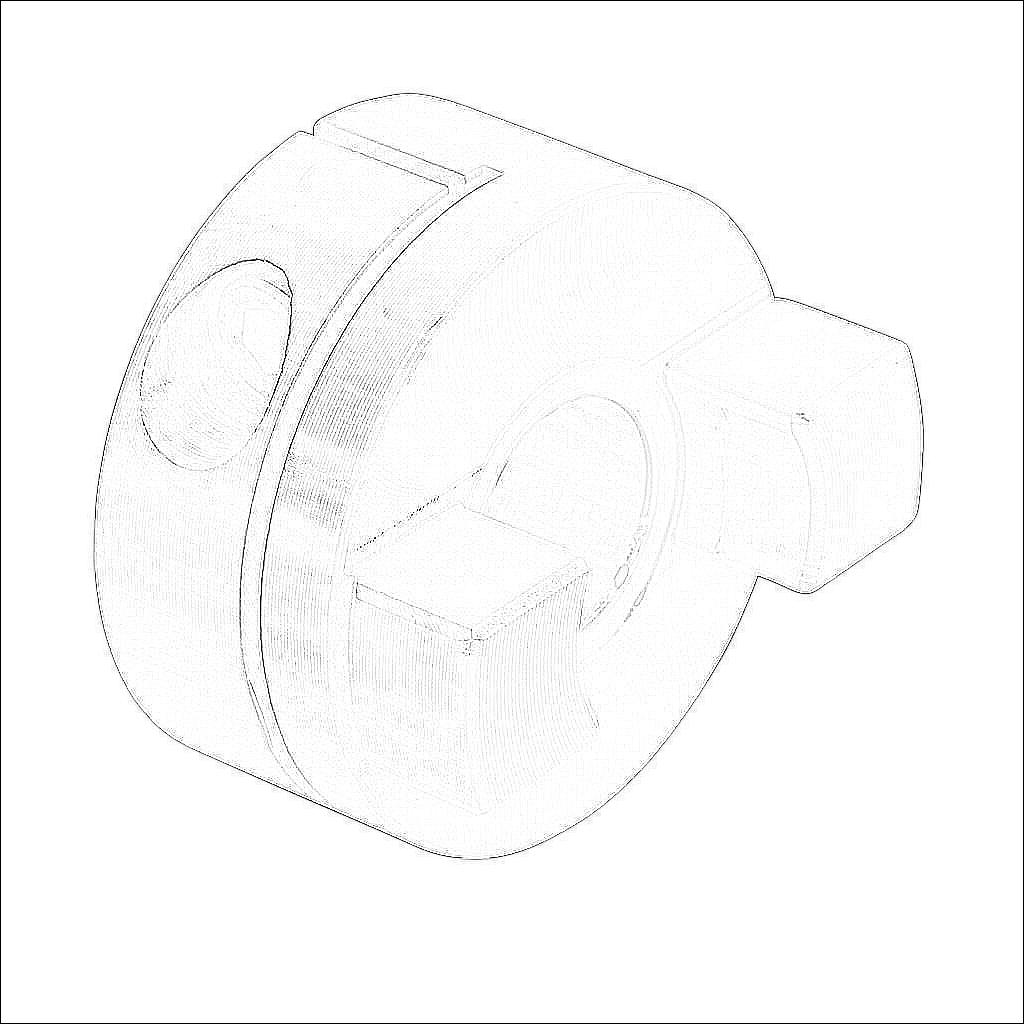

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 9 N-m | |
| Maximum Angular Misalignment | 3.0 degrees | |
| Maximum Parallel Misalignment | 0.41mm | |
| Maximum RPM | 3000 | |
| Attachment Style | Clamp | |
| Coupling Size | 33 | |
| Overall Length | 48mm | |
| Bore Diameter | 12mm | |
| Outside Diameter | 33.3mm | |
| Requires | DC-DDS33 torque disc | |
