| Technical Data | ||
|---|---|---|
| Brand | SureMotion | |

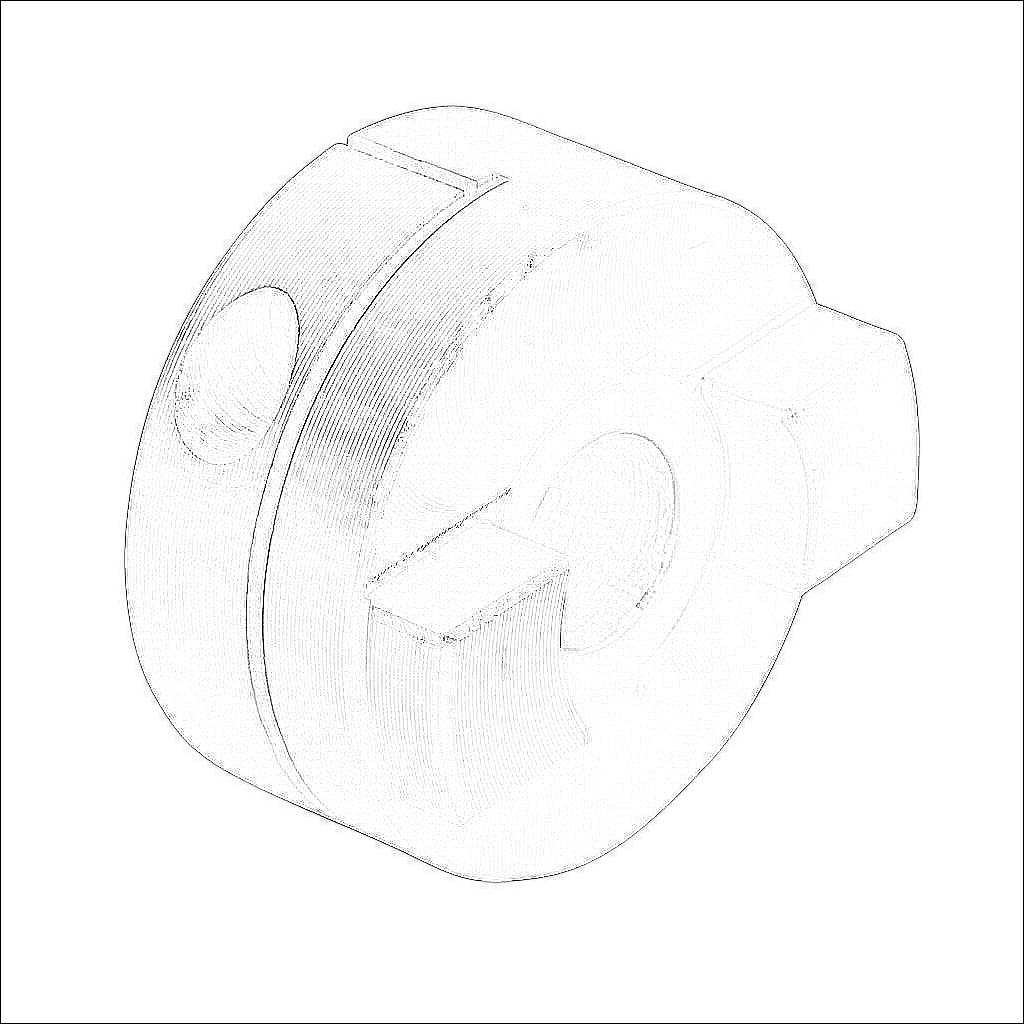

| Item | Drive coupling hub | |
| Coupling Type | Oldham | |
| Material | Aluminum alloy | |
| Rated Torque | 16.9 N-m | |
| Maximum Angular Misalignment | 3.0 degrees | |
| Maximum Parallel Misalignment | 0.51mm | |
| Maximum RPM | 3000 | |
| Attachment Style | Clamp | |
| Coupling Size | 41 | |
| Overall Length | 50.8mm | |
| Bore Diameter | 1/2in | |
| Outside Diameter | 41.4mm | |
| Requires | DC-DDS41 torque disc | |
