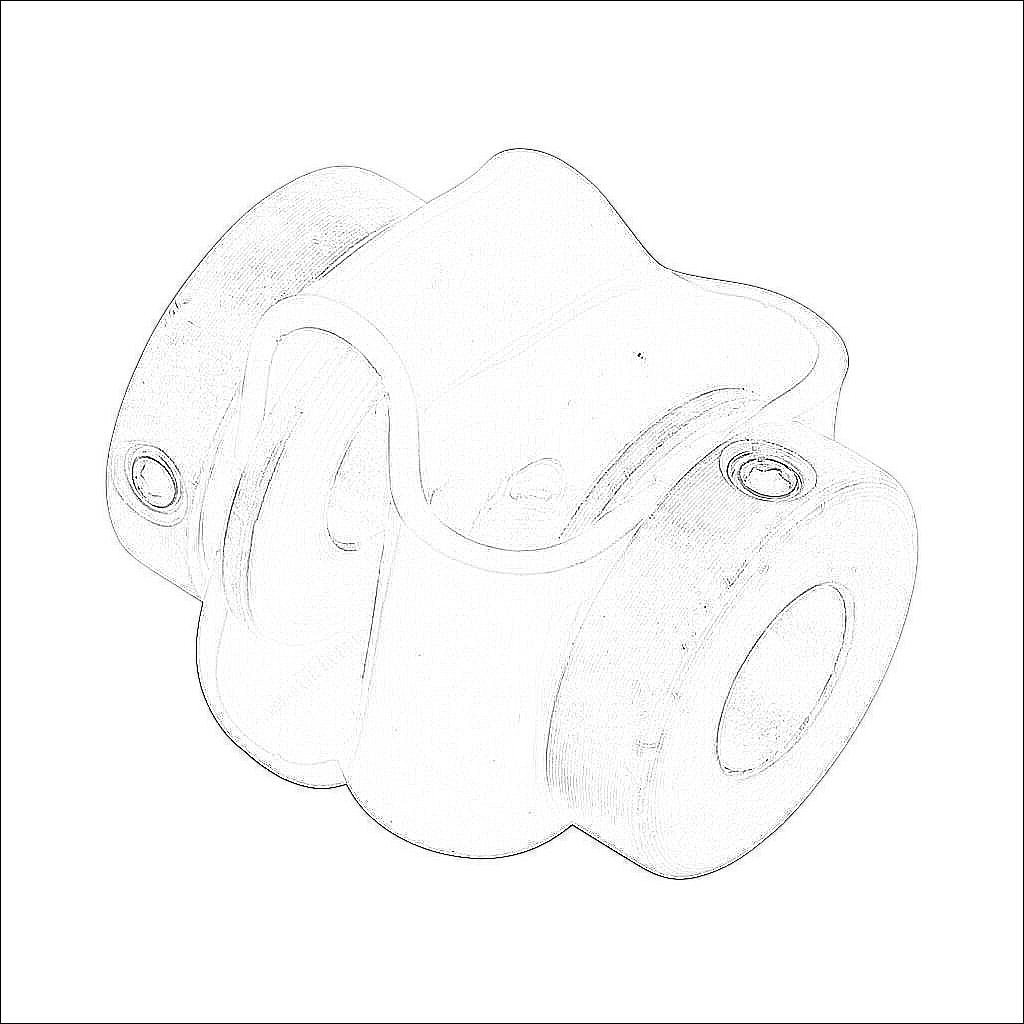

DC-DLSS10-08M

SureMotion drive coupling, double loop, stainless steel, setscrew, size 10, 8mm bore.

$54.38

		Technical Data
	Brand	SureMotion
	Item	Drive coupling
	Coupling Type	Double loop
	Material	Stainless steel
	Rated Torque	0.5 N-m
	Maximum Angular Misalignment	10 degrees
	Maximum Parallel Misalignment	2.6mm
	Maximum RPM	3000
	Attachment Style	Setscrew
	Coupling Size	10
	Overall Length	26.9mm
	Bore Diameter	8mm
	Outside Diameter	26.9mm

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
