DC-DLSS40-10

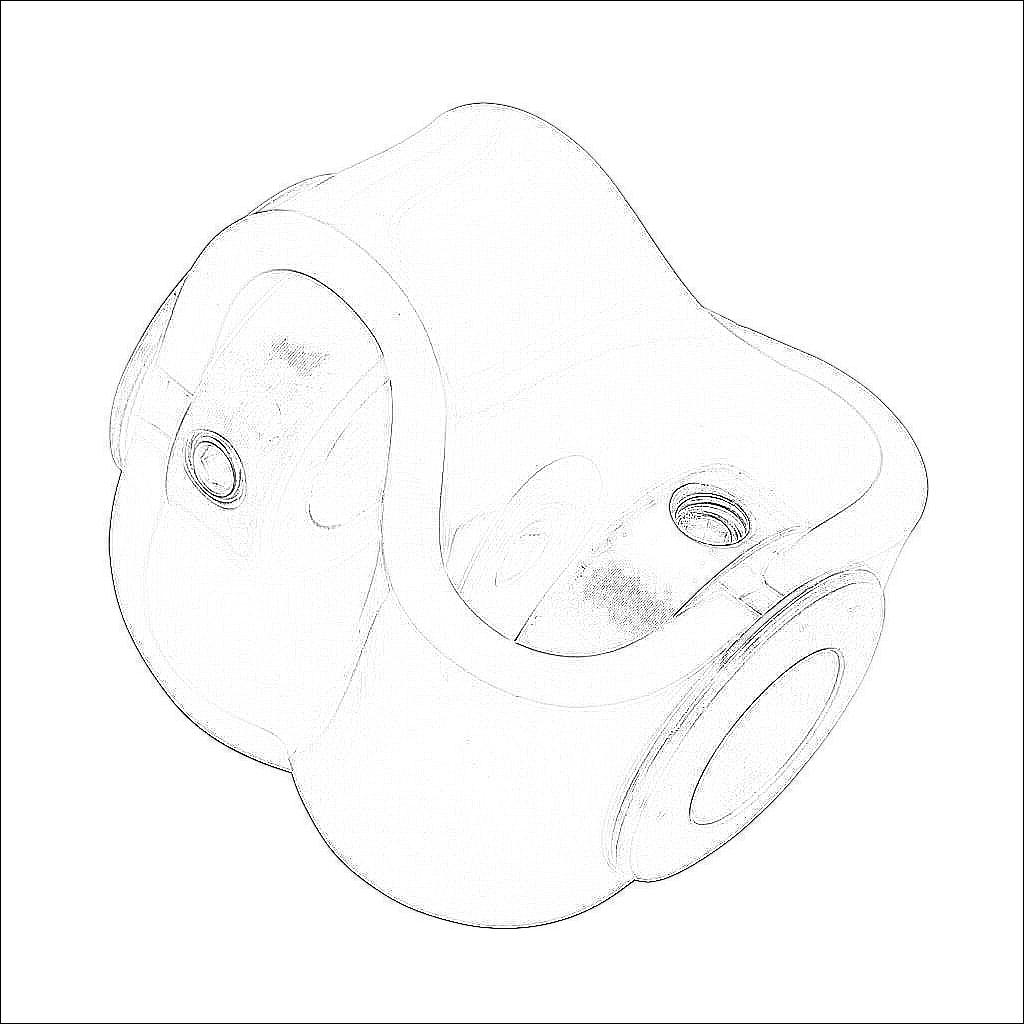

SureMotion drive coupling, double loop, stainless steel, setscrew, size 40, 5/8in bore.

$77.50

		Technical Data
	Brand	SureMotion
	Item	Drive coupling
	Coupling Type	Double loop
	Material	Stainless steel
	Rated Torque	10 N-m
	Maximum Angular Misalignment	15 degrees
	Maximum Parallel Misalignment	3.2mm
	Maximum RPM	3000
	Attachment Style	Setscrew
	Coupling Size	40
	Overall Length	55.9mm
	Bore Diameter	5/8in
	Outside Diameter	55.9mm

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
