| Technical Data | ||
|---|---|---|
| Brand | AcuAMP | |

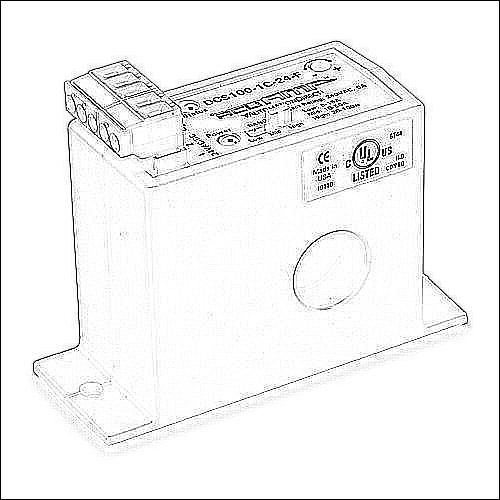

| Item | Current switch | |
| Voltage Type | DC | |
| Body Type | Fixed core | |
| Sensing Range | 5-15, 10-50, or 20-100A selectable | |
| True RMS | No | |
| Trip Point | 5-100A adjustable | |
| Trip Point Adjustment | 11-turn potentiometer | |
| Output | Relay, SPDT | |
| Output Rating | 5A @ 240 VAC or 3A @ 30 VDC | |
| Operating Voltage | 20-28 VAC/VDC | |
| Mounting | Panel or optional 35mm DIN rail | |
| Electrical Connection | Screw terminals | |
| UL Rating | UL 508 listed | |
