DPM1-A-A2R-H

DPM1-A-A2R-H

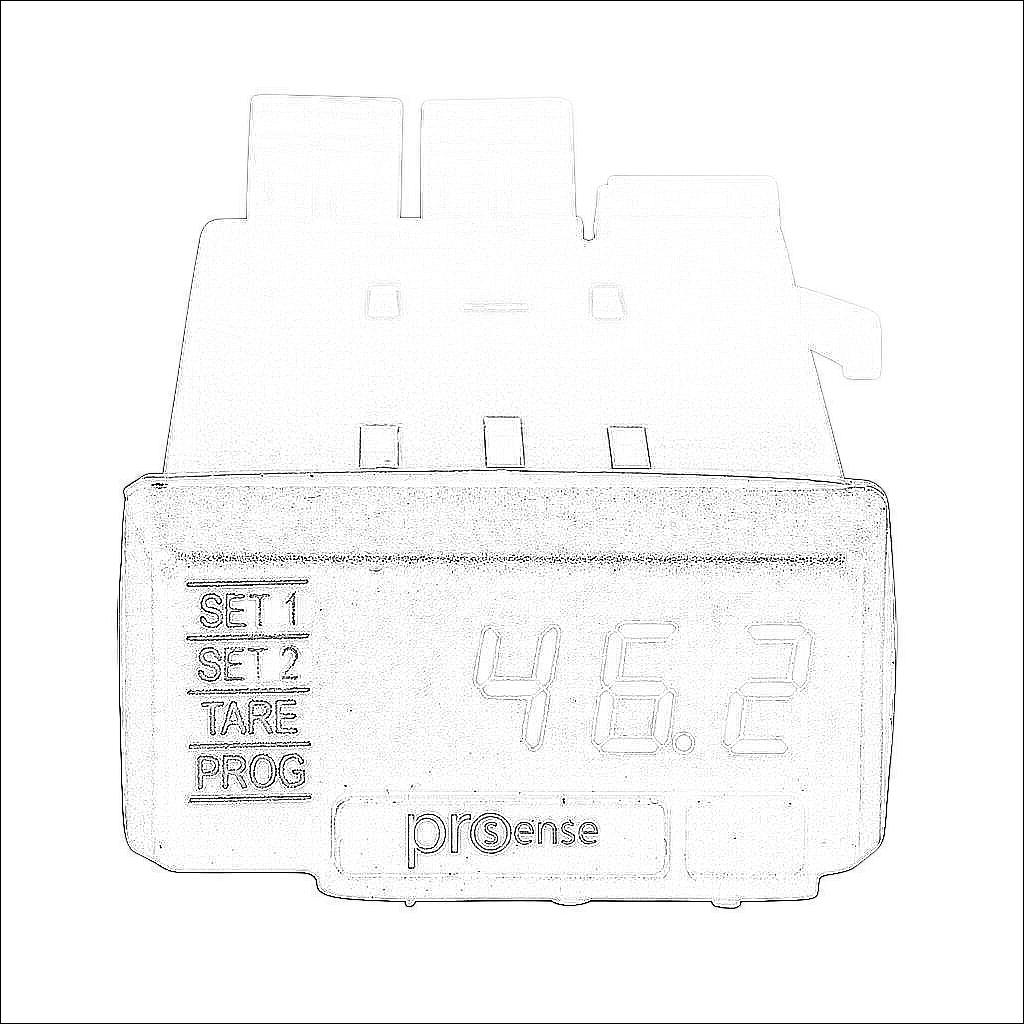

ProSense digital panel meter, panel mount, 1/32 DIN, 8mm 4-digit red LED, current or voltage input, 0/4-20 mA, (2) 5A SPST relays output, 85-265 VAC/100-300 VDC operating voltage.

$203.75
/
Technical Data
BrandProSense
ItemDigital panel meter
MountingPanel
Mounting Hole Size1/32 DIN
Display Type8mm 4-digit red LED
InputCurrent or voltage
Input Current Signal Range+/- 20 mA
Input Voltage Signal Range+/- 100 mVDC, +/- 10 VDC and +/- 60 VDC
Output0/4-20 mA, (2) 5A SPST relays
Operating Voltage85-265 VAC/100-300 VDC
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
