DPM2-E-HL

Name: DPM2-E-HL
Brand: ProSense
SKU: DPM2-E-HL
Price: 195.00 USD
Availability: InStock

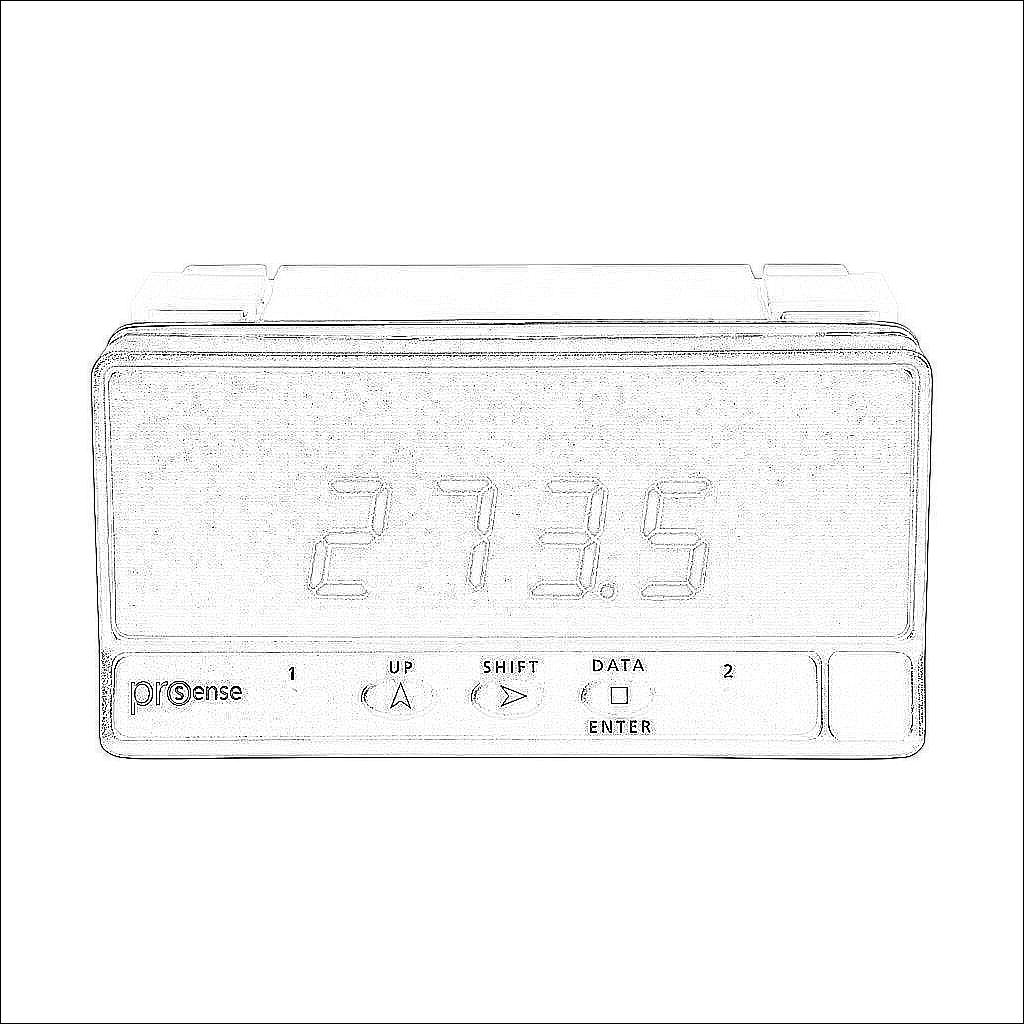

ProSense digital panel meter, panel mount, 1/8 DIN, 14mm 4-digit red LED, AC/DC current or voltage input, 20-265 VAC/11-265 VDC operating voltage.

$195

/

		Technical Data
	Brand	ProSense
	Item	Digital panel meter
	Mounting	Panel
	Mounting Hole Size	1/8 DIN
	Display Type	14mm 4-digit red LED
	Input	AC/DC current or voltage
	Input Current Signal Range	0-1A AC, 0-5A AC, shunt 0-60 mVAC, shunt 0-100 mVAC, +/- 1A DC, +/- 5A DC, shunt +/- 60 mVDC and shunt +/- 100 mVDC
	Input Voltage Signal Range	0-20 VAC, 0-200 VAC, 0-600 VAC, +/- 20 VDC, +/- 200 VDC and +/- 600 VDC
	Operating Voltage	20-265 VAC/11-265 VDC

Downloads

Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
