DPM3-AT-2R-L

DPM3-AT-2R-L

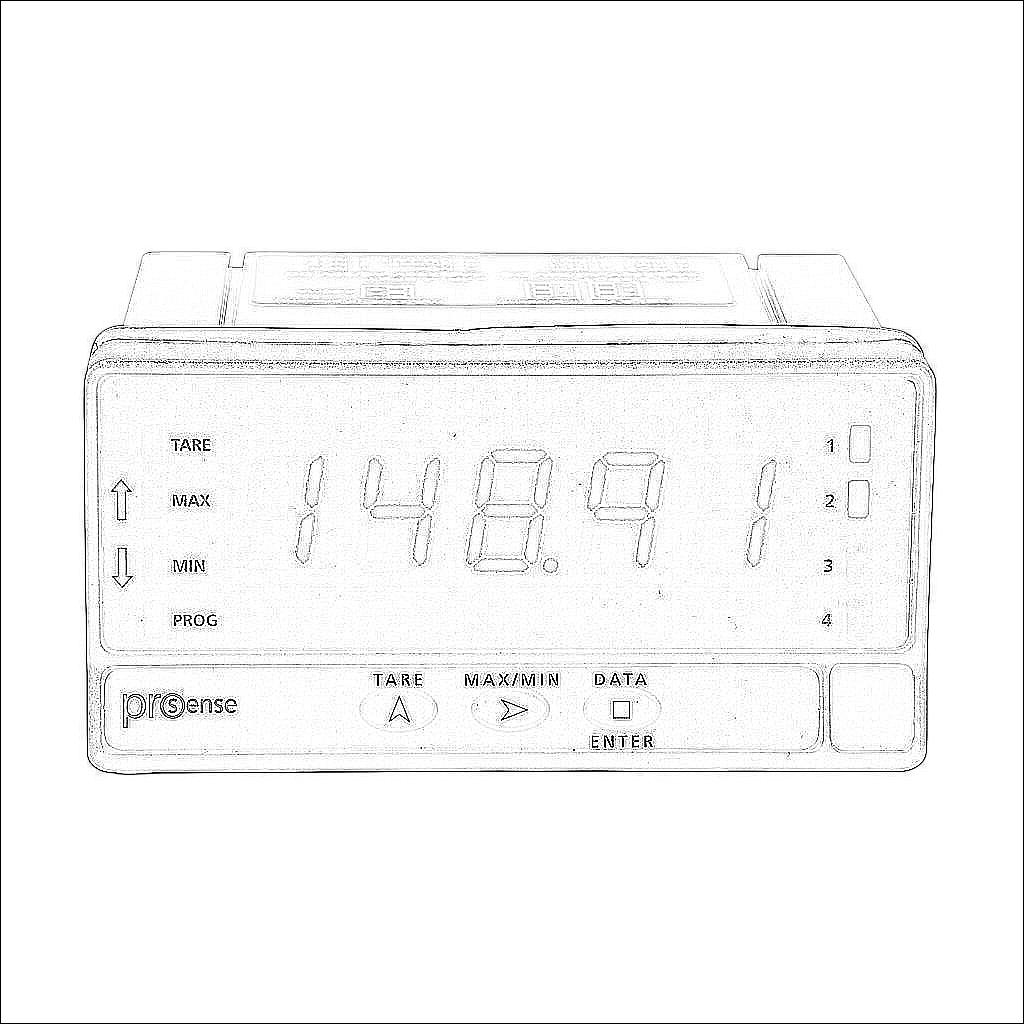

ProSense digital panel meter, panel mount, 1/8 DIN, 14mm 5-digit tri-color (red, green, amber) LED, current, voltage, load cell, RTD or thermocouple input, (2) 8A SPDT relays output, 22-53 VAC/10.5-70 VDC operating voltage.

$273.75
/
Technical Data
BrandProSense
ItemDigital panel meter
MountingPanel
Mounting Hole Size1/8 DIN
Display Type14mm 5-digit tri-color (red, green, amber) LED
InputCurrent, voltage, load cell, RTD or thermocouple
Input Current Signal Range+/- 20 mA
Input Voltage Signal Range+/- 10 VDC
Input Thermocouple Signal TypeJ, K, T, N
Input RTD Signal TypesPt100
Input Load Cell Signal Range+/- 15 mVDC, +/- 30 mVDC and +/- 150 mVDC
Output(2) 8A SPDT relays
Operating Voltage22-53 VAC/10.5-70 VDC
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
