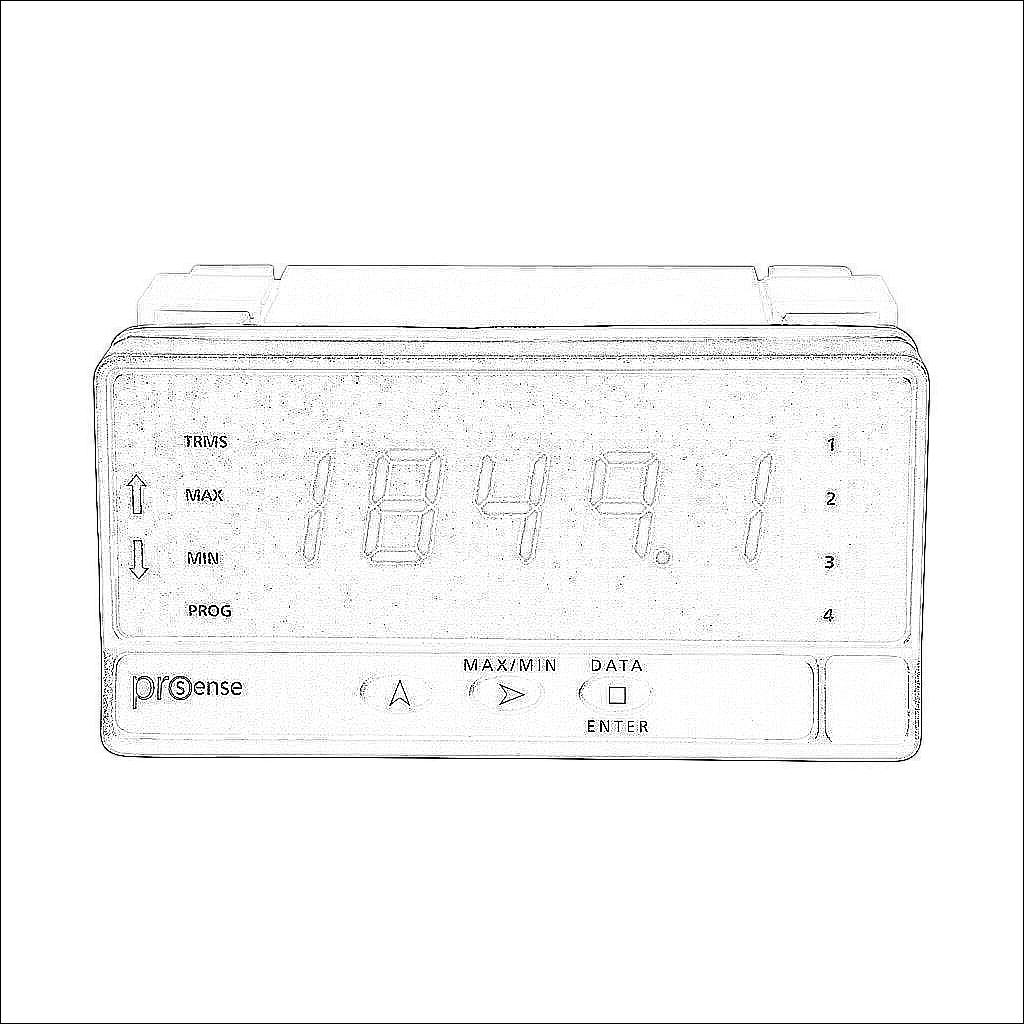

DPM3-E-H

DPM3-E-H

ProSense digital panel meter, panel mount, 1/8 DIN, 14mm 5-digit tri-color (red, green, amber) LED, True RMS AC/DC current or voltage input, 85-265 VAC/100-300 VDC operating voltage.

$282.50
/
Technical Data
BrandProSense
ItemDigital panel meter
MountingPanel
Mounting Hole Size1/8 DIN
Display Type14mm 5-digit tri-color (red, green, amber) LED
InputTrue RMS AC/DC current or voltage
Input Current Signal Range0-200 mA AC True RMS, 0-1A AC True RMS, 0-5A AC True RMS, shunt 0-50 mVAC True RMS, shunt 0-60 mVAC True RMS, shunt 0-100 mVAC True RMS, +/- 200 mA DC, +/- 1A DC, +/- 5A DC, shunt +/- 50 mVDC, shunt +/- 60 mVDC and shunt +/- 100 mVDC
Input Voltage Signal Range0-2 VAC True RMS, 0-20 VAC True RMS, 0-200 VAC True RMS, 0-600 VAC True RMS, +/- 2 VDC, +/- 20 VDC, +/- 200 VDC and +/- 600 VDC
Operating Voltage85-265 VAC/100-300 VDC
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
