| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

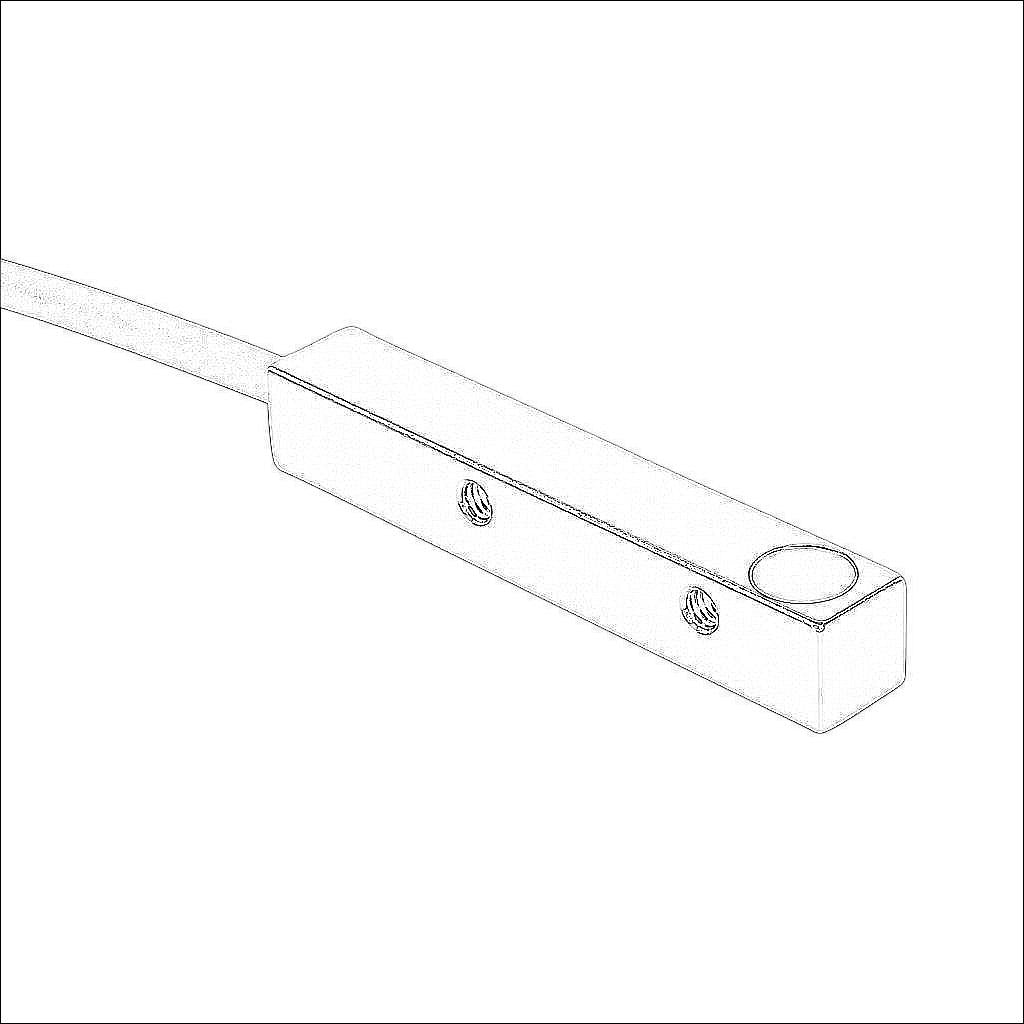

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Standard duty, analog output and small space | |
| Shape | Rectangular | |
| Housing Size | 8 x 8 x 50mm body | |
| Housing Material | Chrome-plated brass | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Analog Output | 0-10 VDC | |
| Sensing Distance | 4mm | |
| Mounting Type | Semi-flush | |
| IO-Link Compatible | No | |
| Operating Voltage | 15-30 VDC | |
| Operating Temperature | -25 to 70c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Conductor Size | 26 AWG | |
| Cable Length | 6.5ft/2m | |
| Jacket Material | PUR | |
| Includes | Mounting hardware | |
