| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

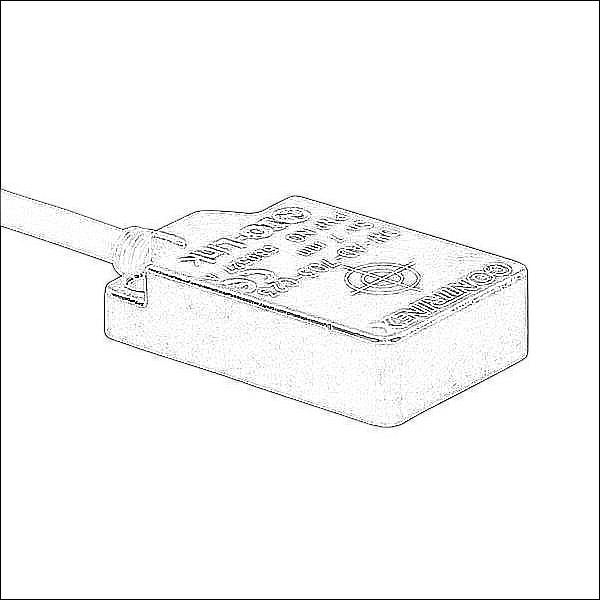

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Harsh duty, full metal, small space and IO-Link | |
| Shape | Rectangular | |
| Housing Size | 32 x 20 x 8mm body | |
| Housing Material | Stainless steel | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.O. output | |
| Sensing Distance | 7mm | |
| Mounting Type | Flush | |
| Switching Frequency | 180 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 85 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP68 IP69K | |
| Connection | Pigtail | |
| IO-Link Compatible | Yes | |
| Communication Port and Connection Type(s) | (1) 3-wire pigtail (IO-Link) port(s) | |
| Port Protocol(s) | IO-Link Class A Device | |
| Port Speed(s) | IO-Link COM2 | |
| IO-Link Version | IO-Link v1.0 | |
| Standard I/O Mode Supported | Yes | |
| Conductor Size | 26 AWG | |
| Cable Length | 6.5ft/2m | |
