| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

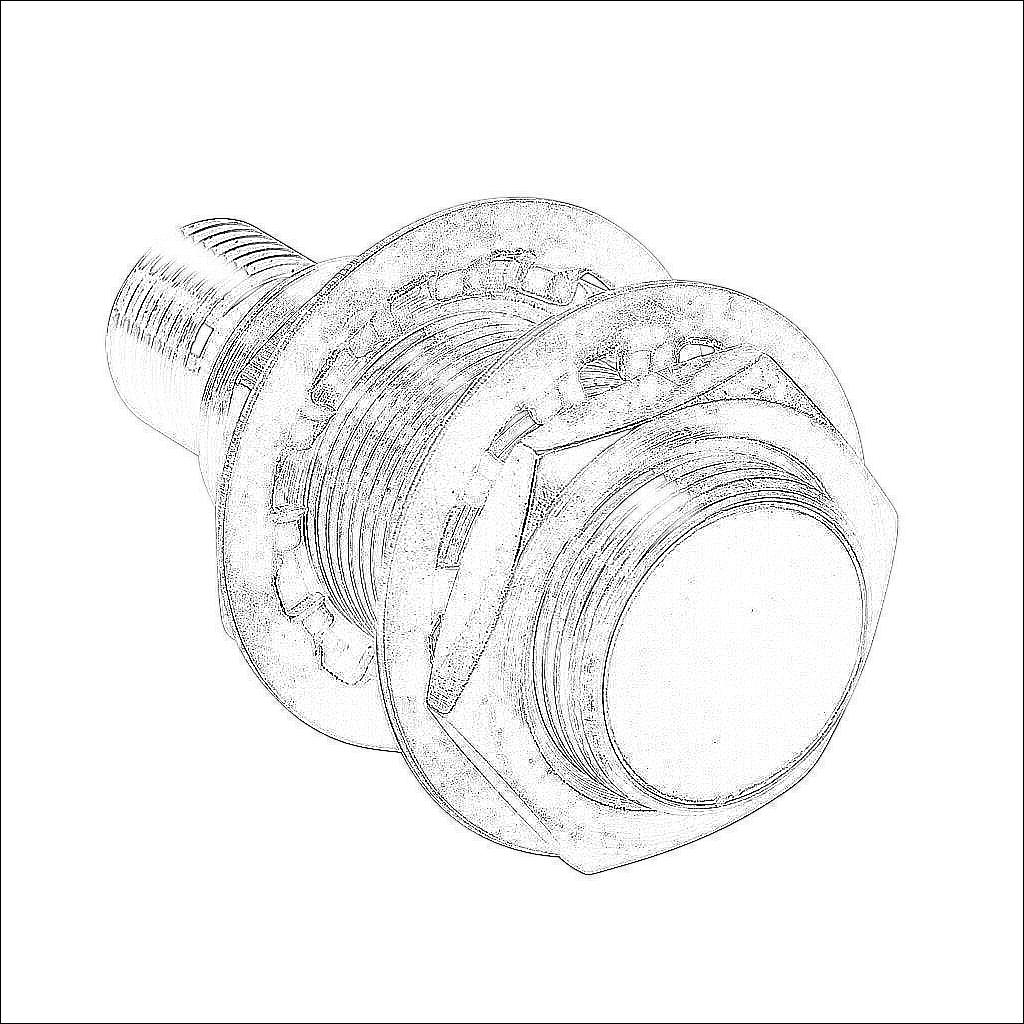

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Standard duty and analog output | |
| Shape | Tubular | |
| Housing Size | 18mm diameter x 48.5mm body | |
| Housing Material | Chrome-plated brass | |
| Barrel Type | Threaded | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 4 | |
| Analog Output | 0-10 VDC or 4-20 mA | |
| Sensing Distance | 10mm | |
| Mounting Type | Semi-flush | |
| IO-Link Compatible | No | |
| Operating Voltage | 15-30 VDC | |
| Operating Temperature | -25 to 70c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Please purchase cable separately | |
