| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

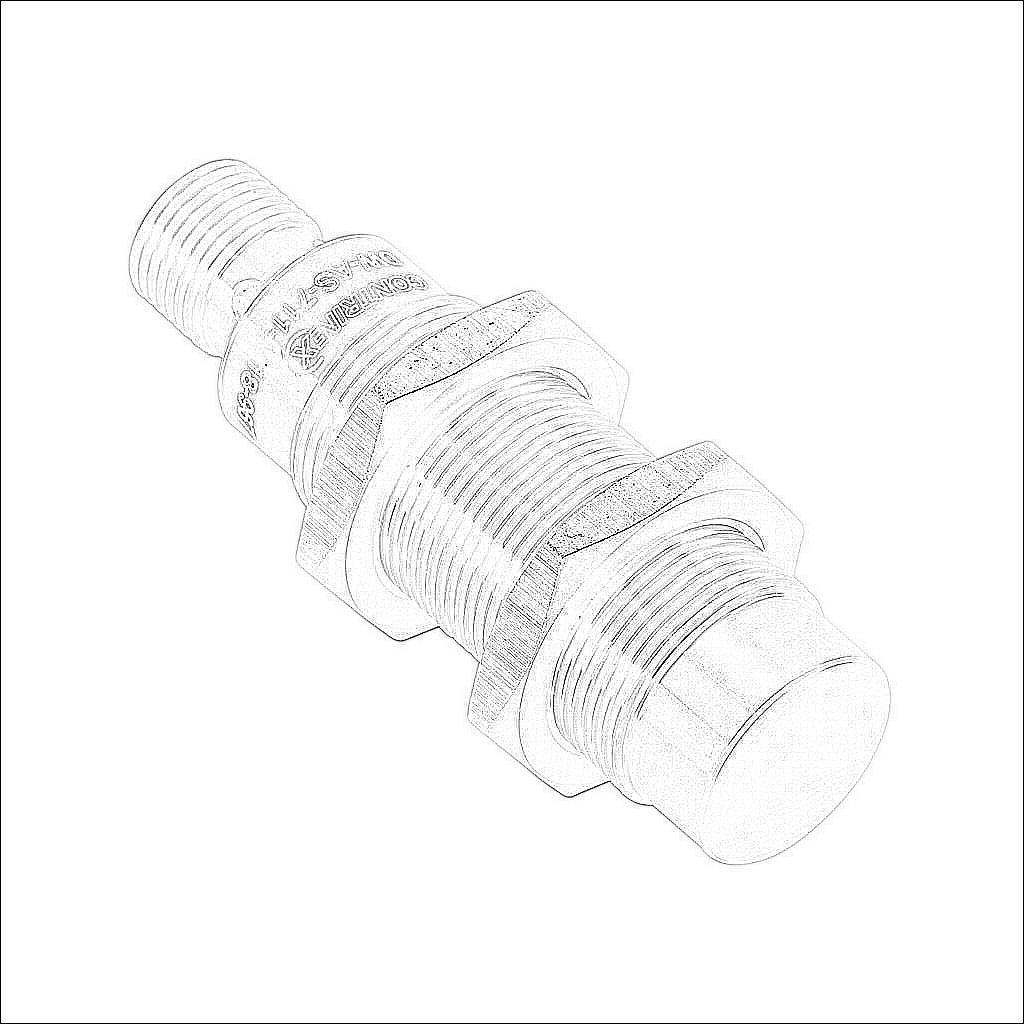

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Machining | |
| Shape | Tubular | |
| Housing Size | 18mm diameter x 63.5mm body | |
| Housing Material | 304 stainless steel | |
| Barrel Type | Threaded | |
| Sensing Method | Standard sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | NPN | |
| Operation Mode | N.O. | |
| Sensing Distance | 5mm | |
| Mounting Type | Non-flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 200 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 85 deg C | |
| Weld Field Immune | No | |
| Chip Immune | Yes | |
| IP Rating | IP68 IP69K | |
| Connection | 4-pin M12 quick-disconnect | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
