| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

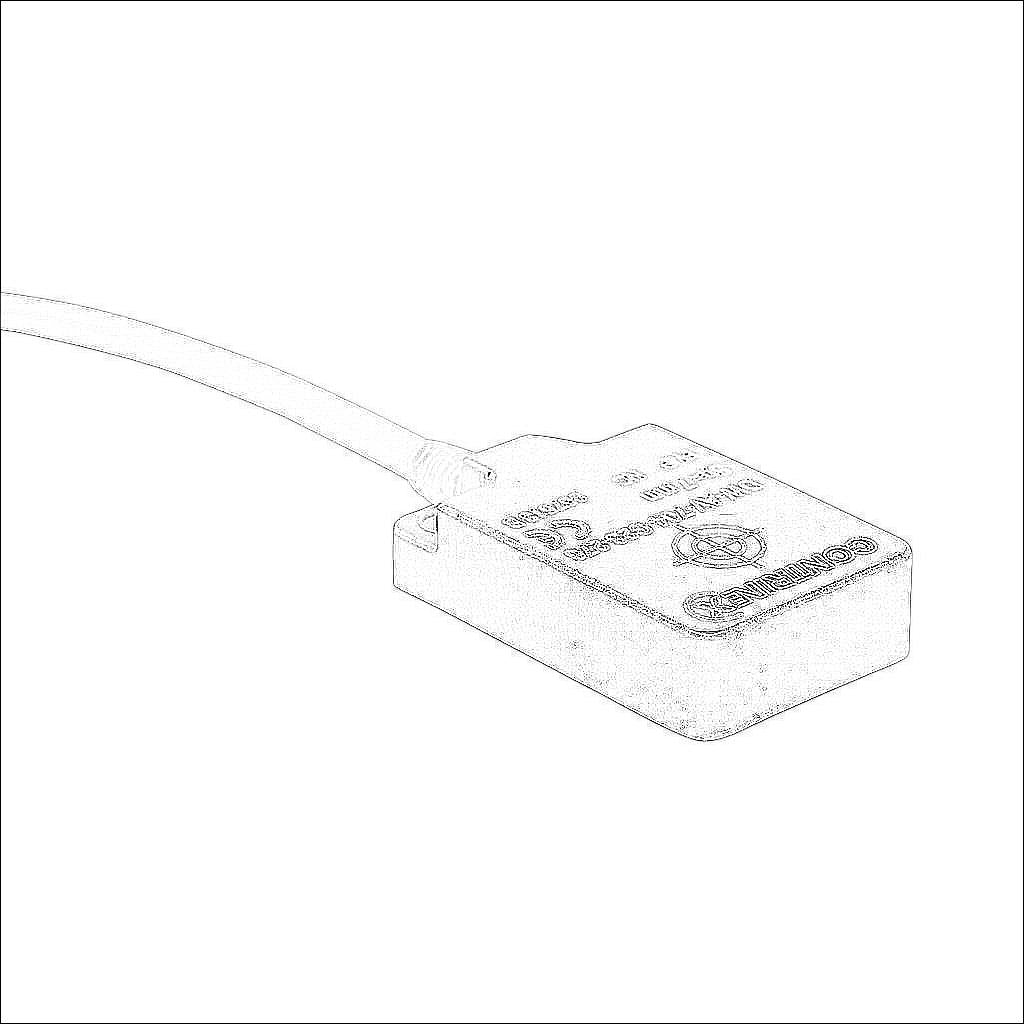

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Harsh duty, full metal and small space | |
| Shape | Rectangular | |
| Housing Size | 32 x 20 x 8mm body | |
| Housing Material | Stainless steel | |
| Sensing Method | Extended sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | PNP | |
| Operation Mode | N.C. output | |
| Sensing Distance | 7mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 180 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 85c | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP68 IP69K | |
| Connection | 3-pin M8 quick-disconnect | |
| Cable Length | 0.6ft/0.2m | |
| Jacket Material | PVC | |
| Additional Information | Purchase cable separately | |
