| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

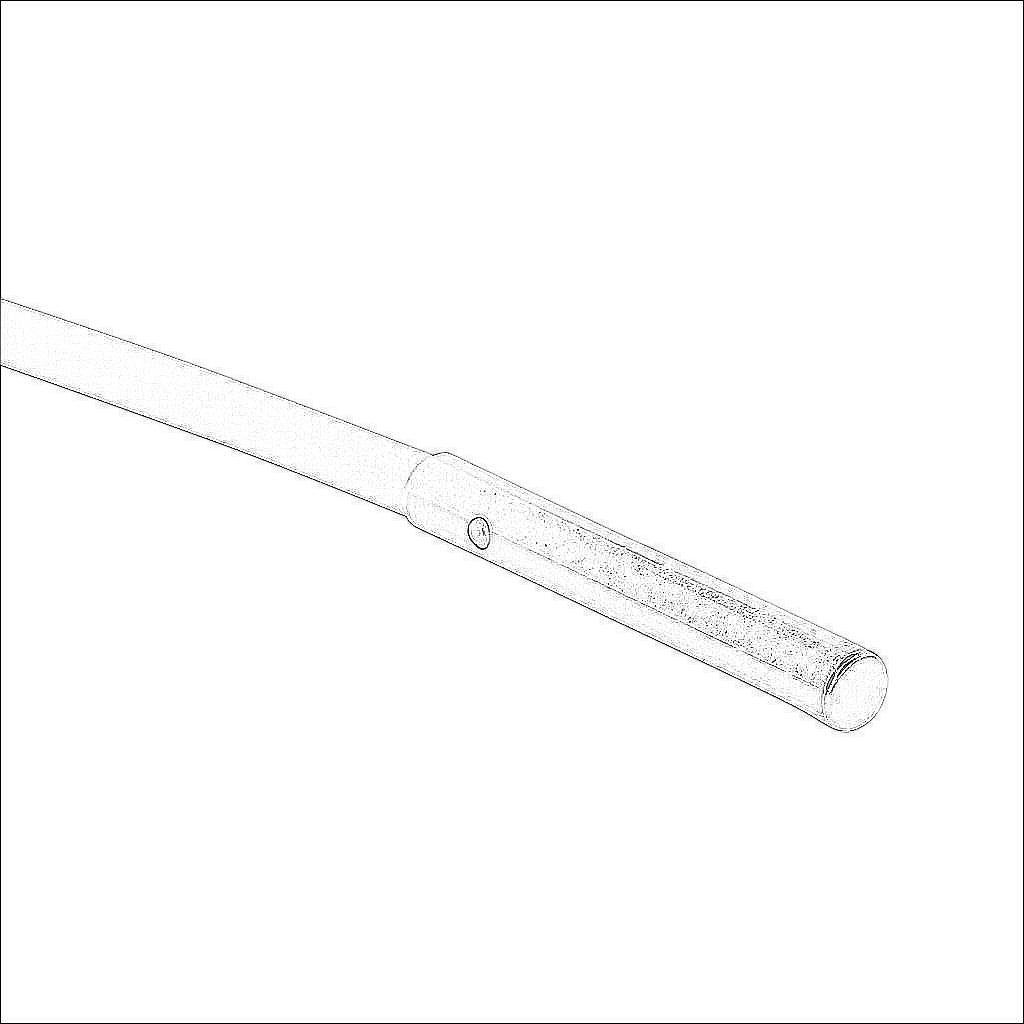

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | Harsh duty, full metal, small space and factor 1 | |
| Shape | Tubular | |
| Housing Size | 4mm diameter x 30mm body | |
| Housing Material | Stainless steel | |
| Barrel Type | Smooth | |
| Sensing Method | Extended sensing, factor 1 | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | NPN | |
| Operation Mode | N.O. output | |
| Sensing Distance | 3mm | |
| Mounting Type | Non-flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 1.2 kHz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | -25 to 85 deg C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | 3-pin M8 quick-disconnect | |
| Cable Length | 0.6ft/0.2m | |
| Jacket Material | 316L stainless steel | |
| Additional Information | Purchase cable separately | |
