| Technical Data | ||
|---|---|---|
| Brand | Contrinex | |

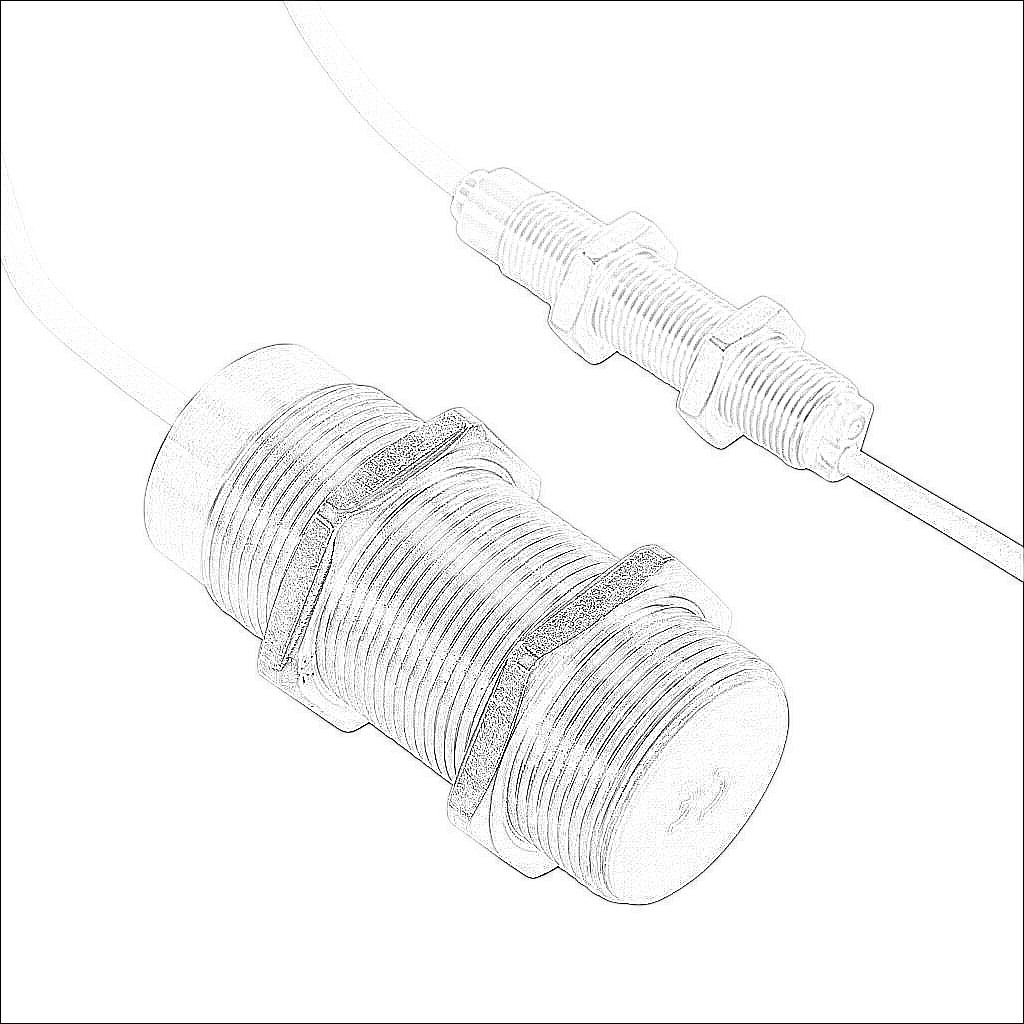

| Item | Proximity sensor | |
| Sensor Type | Inductive | |
| Application | High temperature | |
| Shape | Tubular | |
| Housing Size | 30mm diameter x 75mm body | |
| Housing Material | 304 stainless steel | |
| Barrel Type | Threaded | |
| Sensing Method | Standard sensing | |
| Adjustable | No | |
| Number of Wires | 3 | |
| Switching Output | NPN | |
| Operation Mode | N.O. | |
| Sensing Distance | 10mm | |
| Mounting Type | Flush | |
| IO-Link Compatible | No | |
| Switching Frequency | 200 Hz | |
| Operating Voltage | 10-30 VDC | |
| Operating Temperature | 0 to 230C | |
| Weld Field Immune | No | |
| Chip Immune | No | |
| IP Rating | IP67 | |
| Connection | Pigtail | |
| Conductor Size | 26 AWG | |
| Cable Length | 16.4ft/5m | |
| Jacket Material | PTFE/PUR | |
| Additional Information | Cable consists of 3m PTFE to amplifier and 2m PUR pigtail | |
