| Technical Data | ||
|---|---|---|
| Brand | Lika Electronic | |

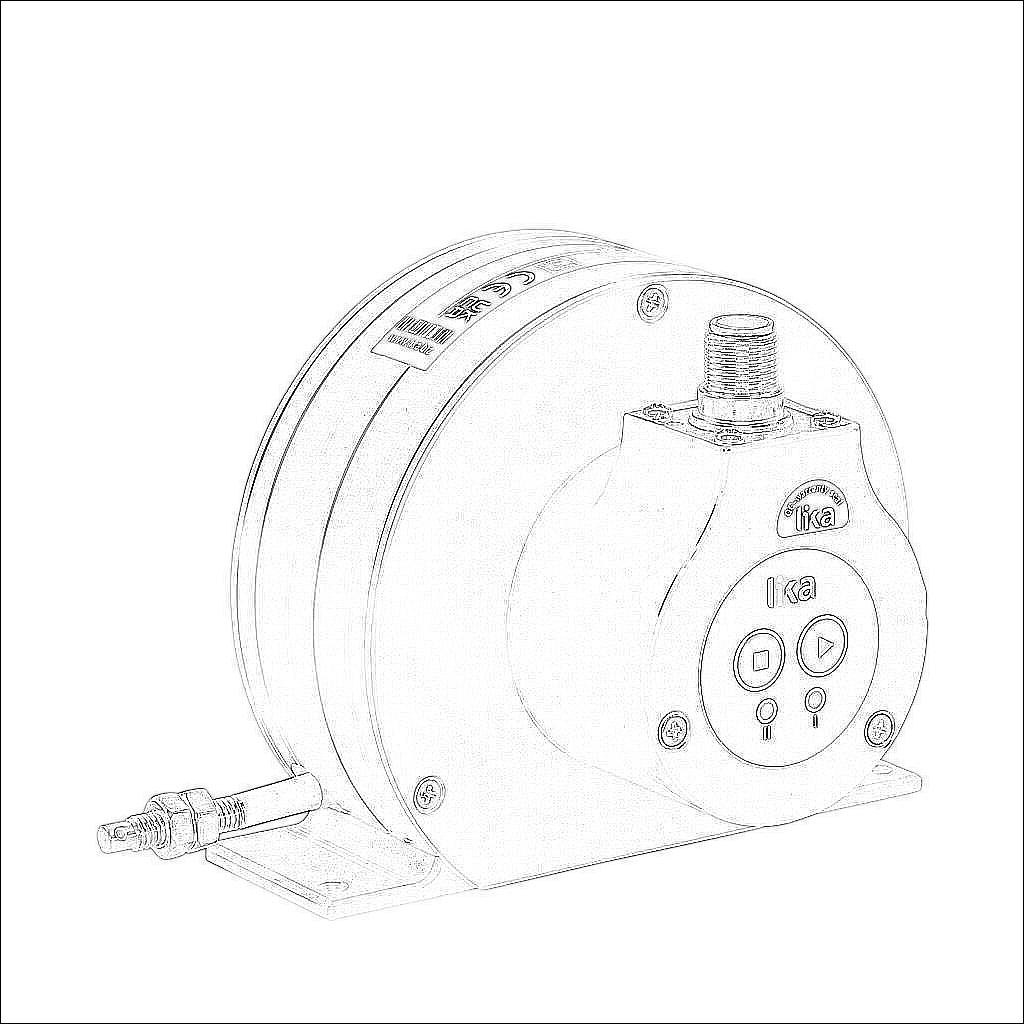

| Item | Draw wire encoder | |
| Series | DWA | |
| Feedback Type | Programmable analog | |
| Encoder Type | Linear | |
| Voltage Rating | 13-30 VDC | |
| Encoder Output Type | 4-20 mA | |
| Duty Rating | Medium duty | |
| Programmable Encoder Resolution | Yes | |
| Encoder Resolution | 0.366 ��A/step | |
| Draw Wire Length | 16.4ft/5m | |
| Speed Rating | 2m/sec | |
| Flange Mount | No | |
| Housing Material | Aluminum alloy | |
| IP Rating | IP65 | |
| Protection Type(s) |
| |
| Exit Orientation | Radial | |
| Connector Type | 5-pin M12 female A-coded | |
| Requires | 5-pin M12 male A-coded cable | |
