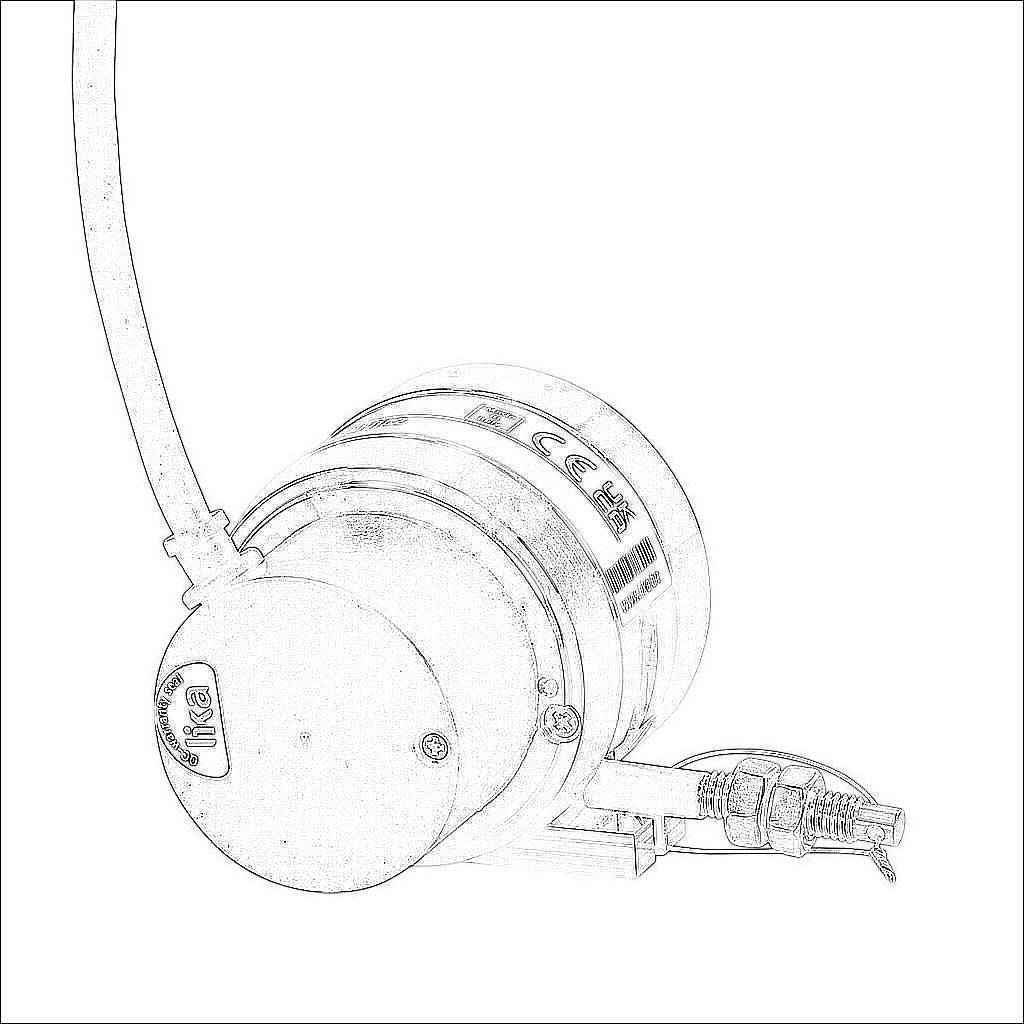

DWI-2M-H0500-RL2

DWI-2M-H0500-RL2

Lika Electronic DWI series incremental (quadrature) linear draw wire encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, light duty, 0.05mm/count, 6.5ft/2m draw wire, IP64, 6.5ft/2m cable length, radial exit, pigtail.

$332.50
/
Technical Data
BrandLika Electronic
ItemDraw wire encoder
SeriesDWI
Feedback TypeIncremental (quadrature)
Encoder TypeLinear
Voltage Rating5-30 VDC
Encoder Output TypeUniversal (line driver or NPN/PNP open collector)
Duty RatingLight duty
Programmable Encoder ResolutionNo
Encoder Resolution0.05mm/count
Draw Wire Length6.5ft/2m
Speed Rating1m/sec
Flange MountNo
Housing MaterialAluminium/ABS plastic
IP RatingIP64
Protection Type(s)
  • short circuit (between each output and common)
  • reverse polarity
Cable Length6.5ft/2m
Cable Diameter Size6mm
Wire Size24 AWG
Exit OrientationRadial
Connector TypePigtail
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
