| Technical Data | ||
|---|---|---|
| Brand | Eaton | |

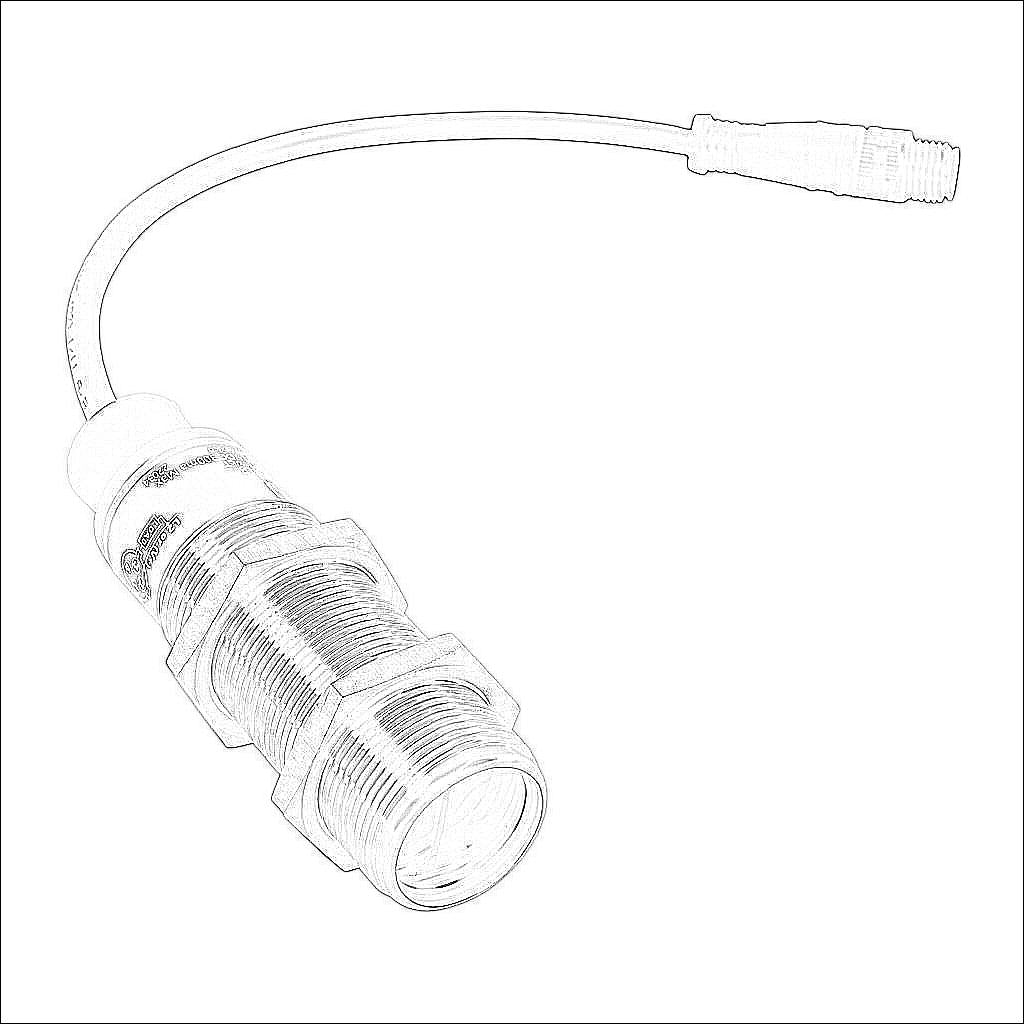

| Item | Photoelectric sensor | |
| Shape | Tubular | |
| Barrel Type | Threaded | |
| Housing Size | 30mm diameter X 89mm body | |
| IP Rating | IP69 | |
| Application | For harsh duty / food and beverage applications | |
| Housing Material | 303 stainless steel | |
| Sensing Method | Diffuse with background suppression | |
| Operating Voltage | 15-30 VDC/20-132 VAC | |
| Number of Wires | 3 | |
| Switching Output | Solid state relay | |
| Sensing Distance | 150mm | |
| Operation Mode | Light-on | |
| Switching Frequency | 100 Hz | |
| Light Emission | Visible red | |
| IO-Link Compatible | No | |
| Cable Length | 7in | |
| Jacket Material | Carbon steel | |
| Connection | 4-pin AC micro 1/2in-20 UNF thread | |
| Includes | Mounting hardware | |
| Additional Information | Purchase cable separately | |
