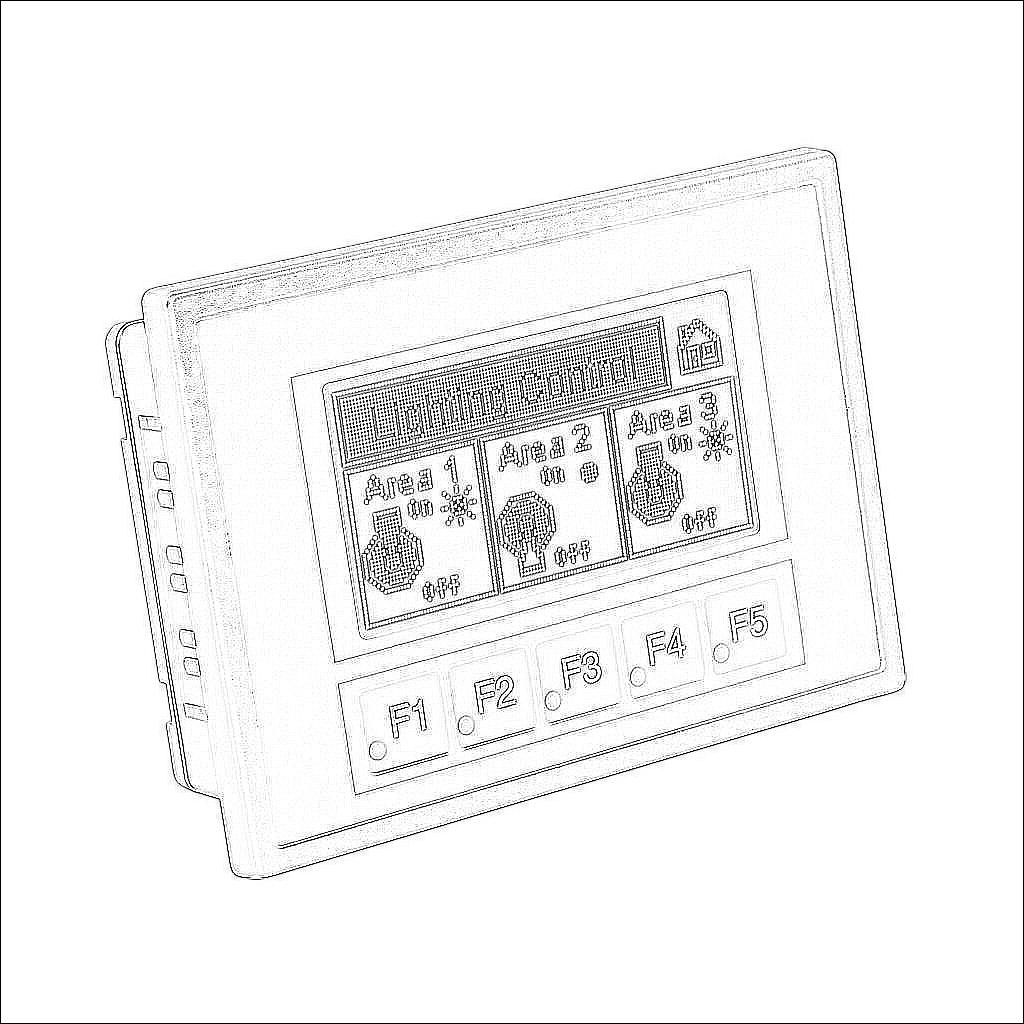

EA3-S3ML-RN

C-more Micro EA3 series HMI, 3in monochrome STN LCD, 128 x 64 pixel, LED backlight, (1) serial port.

		Technical Data
	Brand	C-more Micro
	Item	HMI
	Series	EA3
	Touch Screen	No
	Display Size	3in
	Viewable Size	3.1in
	Display Type	Monochrome STN LCD
	Widescreen	No
	Display Maximum Colors	12-color monochrome
	Display Resolution	128 x 64 pixel
	Brightness	150nits
	Display Orientation	Landscape
	Backlight Type	LED
	External Power Requirement	5 VDC
	Housing Rating	NEMA 1 (NEMA 4/4X when installed with optional EA-MG-S3ML-GSK Gasket)
	Environmental Requirements	Indoor use only
	IP Rating	IP20 (IP65 when installed with optional EA-MG-S3ML-GSK Gasket)
	Mounting	Panel
	Communication Port and Connection Type(s)	(1) RS-232 (RJ12)
	Port Protocol(s)	AutomationDirect CLICK serial AutomationDirect DirectLOGIC K-Sequence AutomationDirect DirectLOGIC DirectNET AutomationDirect Do-more/BRX serial AutomationDirect Productivity Series serial Entivity WinPLC Modbus RTU Master Modbus RTU Master
	Port Speed(s)	up to 38.4k baud
	Programming Software	EA-MG-PGMSW programming software v4.3 or later
	Includes	Mounting hardware
	Additional Information	Selectable LED backlight for longer lifetime; red, green, amber, yellow, lime, pink1, pink2, pink3, emerald1, emerald2, emerald3 and white. Power is supplied to the panel through the RJ12 port when used with AutomationDirect PLCs
