EA3-T4CL

EA3-T4CL

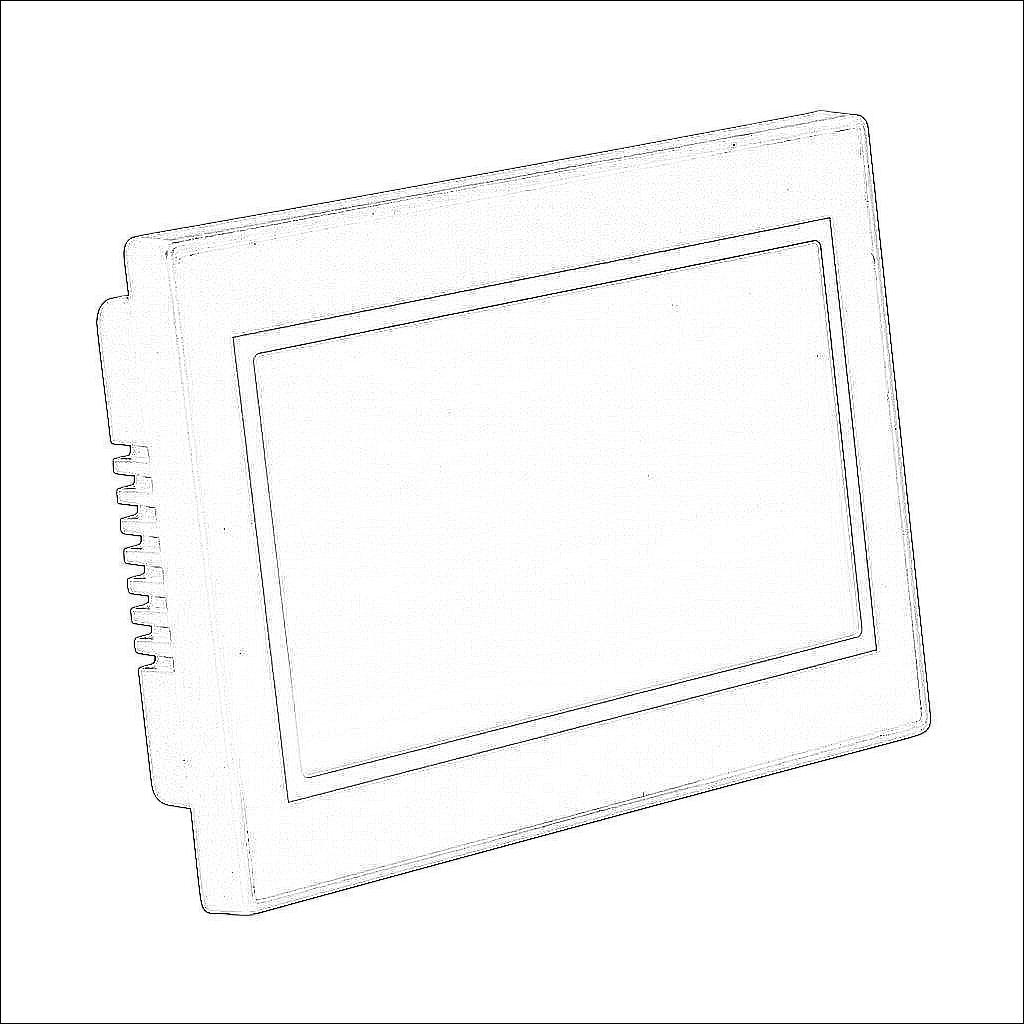

C-more Micro EA3 series touch screen HMI, 4in color TFT LCD, resistive single-touch, widescreen, 480 x 272 pixel, WQVGA, LED backlight, (2) serial, (1) Ethernet and (1) microB-USB ports.

$491.25
/
Technical Data
BrandC-more Micro
ItemHMI
SeriesEA3
Touch ScreenYes
Display Size4in
Viewable Size4.3in
Display TypeColor TFT LCD
WidescreenYes
Display Maximum Colors32K colors
Display Resolution480 x 272 pixel
Display Video StandardWQVGA
Touch Panel TypeResistive single-touch
Brightness370nits
Display OrientationLandscape/portrait
Backlight TypeLED
External Power Requirement12-24 VDC
Housing RatingNEMA 4/4X
Environmental RequirementsIndoor use only
IP RatingIP65
MountingPanel
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-232/422/485 (DB15 female)
  • (1) microB-USB
Port Protocol(s)
  • Allen-Bradley DF1 full duplex
  • Allen-Bradley DF1 half duplex
  • Allen-Bradley DH485/AIC/AIC+
  • Allen-Bradley EtherNet/IP Client
  • AutomationDirect CLICK Ethernet
  • AutomationDirect CLICK serial
  • AutomationDirect DirectLOGIC K-Sequence
  • AutomationDirect DirectLOGIC DirectNET
  • AutomationDirect Do-more/BRX serial
  • AutomationDirect Do-more/BRX Ethernet
  • AutomationDirect ECOM Ethernet
  • AutomationDirect GS drives serial
  • AutomationDirect Productivity Ethernet
  • AutomationDirect Productivity Series serial
  • AutomationDirect SOLO temperature controller
  • Entivity WinPLC Modbus RTU Master
  • GE SNPX (90/30, 90/70, Micro 90, Versa Max Micro)
  • Mitsubishi FX Direct
  • Mitsubishi Q
  • Mitsubishi QnA Ethernet
  • Modbus RTU Master
  • Modbus TCP/IP Client
  • Omron FINS serial
  • Omron Host Link
  • Siemens S7-200 Serial-PPI
Port Speed(s)
  • up to 38.4k baud
  • 10/100 Mbps
Programming SoftwareEA-MG-PGMSW programming software v4.2 or later
IncludesMounting hardware and gasket
