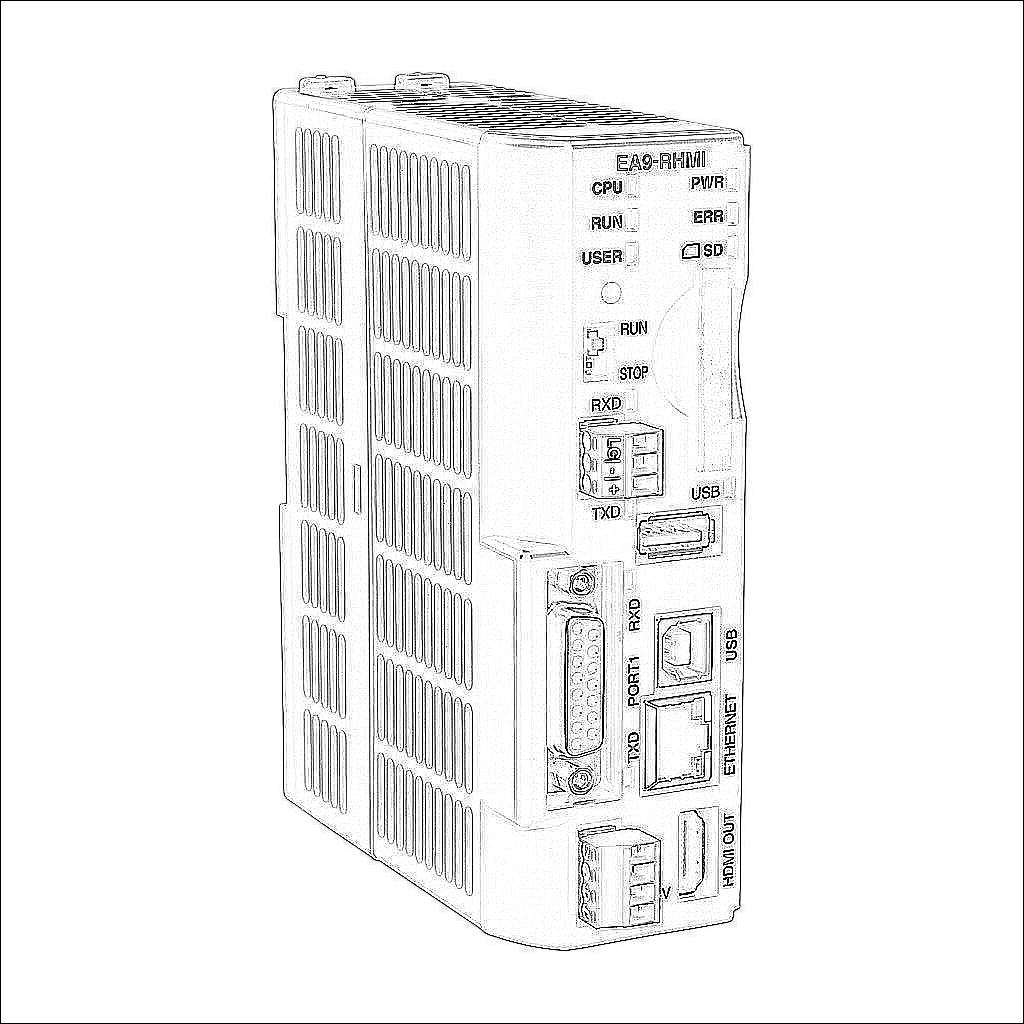

EA9-RHMI

EA9-RHMI

C-more EA9 series headless HMI, (2) serial, (1) Ethernet and (2) USB ports, (1) HDMI audio/video out and (1) memory card slot.

$790
/
Technical Data
BrandC-more
ItemHeadless HMI
SeriesEA9
Touch ScreenNo
Touch Screen Compatibility
  • ELO single-touch resistive
  • ELO single-touch SAW
  • EETI eGalax single-touch resistive
  • EETI eGalax single-touch pCAP
Display Resolution640 x 480 pixel, 720 x 480 pixel, 1024 x 768 pixel and 1280 x 720 pixel
Display Video StandardVGA, SD, XGA and HD
CPU Clock Speed800 MHz
External Power Requirement12-24 VDC
Mounting35mm DIN rail
A/V Port and Connection Type(s)
  • (1) HDMI audio/video output
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-485
  • (1) RS-232/422/485
  • (1) USB A
  • (1) USB B
Port Protocol(s)
  • Allen-Bradley DF1 full duplex
  • Allen-Bradley DF1 half duplex
  • Allen-Bradley DH485/AIC/AIC+
  • Allen-Bradley EtherNet/IP Client
  • Allen-Bradley EtherNet/IP Client (tag-based for ControlLogix)
  • Allen-Bradley EtherNet/IP Server (generic I/O messaging)
  • AutomationDirect CLICK Ethernet
  • AutomationDirect CLICK serial
  • AutomationDirect DirectLOGIC K-Sequence
  • AutomationDirect DirectLOGIC DirectNET
  • AutomationDirect DirectLOGIC Ethernet
  • AutomationDirect Do-more/BRX serial
  • AutomationDirect Do-more/BRX Ethernet
  • AutomationDirect ECOM Ethernet
  • AutomationDirect GS drives serial
  • AutomationDirect GS drives Ethernet
  • AutomationDirect Productivity Ethernet
  • AutomationDirect Productivity Series serial
  • AutomationDirect SOLO temperature controller
  • Entivity WinPLC Modbus RTU Master
  • Entivity WinPLC Modbus TCP/IP Client
  • FTP Client/Server
  • GE SNPX (90/30, 90/70, Micro 90, Versa Max Micro)
  • GE SRTP Ethernet
  • Mitsubishi FX Direct
  • Mitsubishi Q
  • Mitsubishi QnA Ethernet
  • Mitsubishi QnA serial
  • Modbus RTU Master
  • Modbus TCP/IP Client
  • SMTPs Client
  • Omron FINS Ethernet
  • Omron FINS serial
  • Omron Host Link
  • Siemens S7-200 Ethernet ISO over TCP
  • Siemens S7-200 Serial-PPI
  • Siemens S7-300/400/1200/1500 Ethernet ISO over TCP
  • webserver (secure HTTPs)
Mobile App EnabledAndroid/iOS Remote HMI App
Port Speed(s)
  • up to 38.4k baud
  • 10/100 Mbps
Removable Media TypeSD card slot
Programming SoftwareEA9-PGMSW programming software v6.5 or later
Additional InformationCan be connected to any HDMI compatible display (such as monitors or televisions). Supports VGA 640 x 480, SD 720 x 480, XGA 1024 x 768, HD 1280 x 720. Touchscreen or mouse support is available via USB connection. Compatible with AutomationDirect Atlas monitors. See user manual for more compatible touchscreen monitors
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
