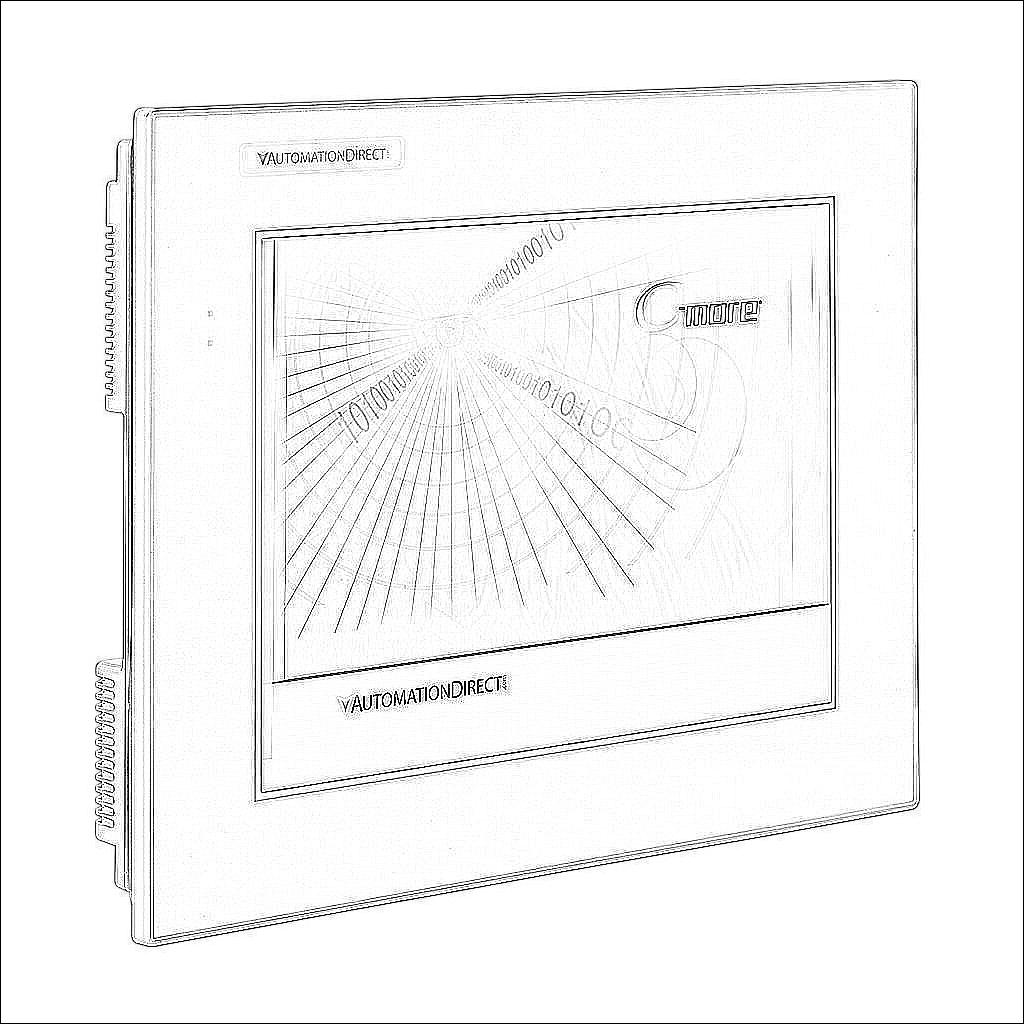

EA9-T12CL

EA9-T12CL

C-more EA9 series touch screen HMI, 12in color TFT LCD, resistive single-touch, 800 x 600 pixel, SVGA, LED backlight, (3) serial, (1) Ethernet, (2) USB ports, (2) memory card slots, (1) HDMI video out and (1) audio line out.

$1,848.75
/
Technical Data
BrandC-more
ItemHMI
SeriesEA9
Touch ScreenYes
Display Size12in
Viewable Size12.1in
Display TypeColor TFT LCD
WidescreenNo
Display Maximum Colors64K colors
Display Resolution800 x 600 pixel
Display Video StandardSVGA
Touch Panel TypeResistive single-touch
Brightness280nits
Display OrientationLandscape/portrait
Backlight TypeLED
CPU Clock Speed800 MHz
External Power Requirement12-24 VDC
Housing RatingNEMA 4/4X
Environmental RequirementsIndoor use only
IP RatingIP65
MountingPanel
A/V Port and Connection Type(s)
  • (1) HDMI video out (HDMI Type A) and (1) 3.5mm mini jack - requires amplifier and speaker(s)
Communication Port and Connection Type(s)
  • (1) Ethernet 10/100Base-T (RJ45)
  • (1) RS-232 (RJ12)
  • (1) RS-232/422/485 (DB15 female)
  • (1) RS-485 (3-pin terminal)
  • (1) USB A
  • (1) USB B
Port Protocol(s)
  • Allen-Bradley DF1 full duplex
  • Allen-Bradley DF1 half duplex
  • Allen-Bradley DH485/AIC/AIC+
  • Allen-Bradley EtherNet/IP Client
  • Allen-Bradley EtherNet/IP Client (tag-based for ControlLogix)
  • Allen-Bradley EtherNet/IP Server (generic I/O messaging)
  • AutomationDirect CLICK Ethernet
  • AutomationDirect CLICK serial
  • AutomationDirect DirectLOGIC K-Sequence
  • AutomationDirect DirectLOGIC DirectNET
  • AutomationDirect DirectLOGIC Ethernet
  • AutomationDirect Do-more/BRX serial
  • AutomationDirect Do-more/BRX Ethernet
  • AutomationDirect ECOM Ethernet
  • AutomationDirect GS drives serial
  • AutomationDirect GS drives Ethernet
  • AutomationDirect Productivity Ethernet
  • AutomationDirect Productivity Series serial
  • AutomationDirect SOLO temperature controller
  • Entivity WinPLC Modbus RTU Master
  • Entivity WinPLC Modbus TCP/IP Client
  • FTP Client/Server
  • GE SNPX (90/30, 90/70, Micro 90, Versa Max Micro)
  • GE SRTP Ethernet
  • Mitsubishi FX Direct
  • Mitsubishi Q
  • Mitsubishi QnA Ethernet
  • Mitsubishi QnA serial
  • Modbus RTU Master
  • Modbus TCP/IP Client
  • SMTPs Client
  • Omron FINS Ethernet
  • Omron FINS serial
  • Omron Host Link
  • Siemens S7-200 Ethernet ISO over TCP
  • Siemens S7-200 Serial-PPI
  • Siemens S7-300/400/1200/1500 Ethernet ISO over TCP
  • webserver (secure HTTPs)
Mobile App EnabledAndroid/iOS Remote HMI App
Port Speed(s)
  • up to 38.4k baud
  • 10/100 Mbps
Removable Media Type(2) SD card slots
Programming SoftwareEA9-PGMSW programming software v5.0 or later
IncludesMounting hardware, gasket and cutout template
Downloads
Technical Specifications Manual Insert Software Firmware Helpfile 2d Drawing 3d Model
