| Technical Data | ||
|---|---|---|
| Brand | Edison | |

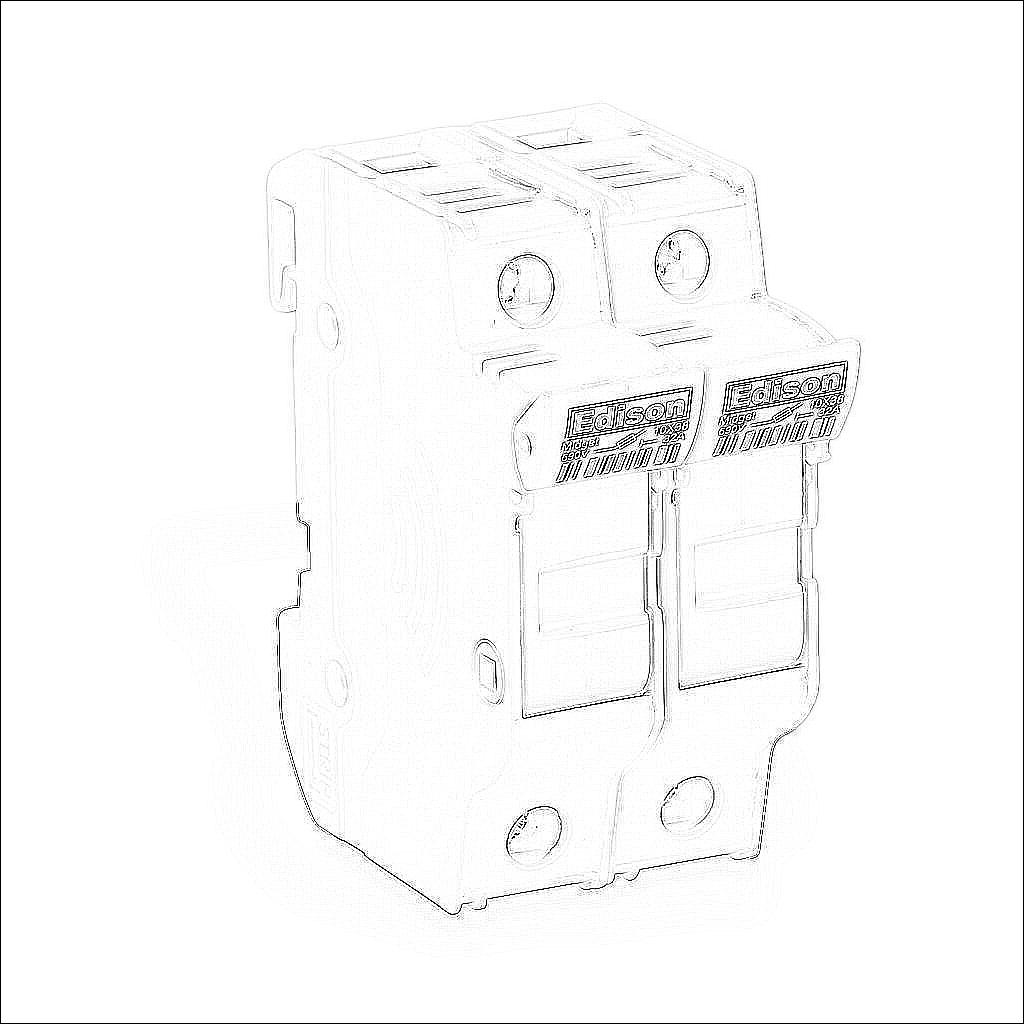

| Item | Fuse holder | |
| Modular | Yes | |
| Blown Fuse Indicator | No | |
| Multi-Wire | No | |
| Accepts Fuse Class | Class Midget | |
| Amperage Rating | 30A | |
| Voltage Rating | 600V | |
| Number of Poles | 2 | |
| Conductor Size | 18-4 AWG copper only | |
| Conductor Connection Type | Integral pressure plate with separate spade connection | |
| SCCR Rating | 200kA SCCR | |
| Fuse Connection Type | Clip with reinforced spring | |
| Mounting | 35mm DIN rail | |
