| Technical Data | ||
|---|---|---|
| Brand | Leadshine | |

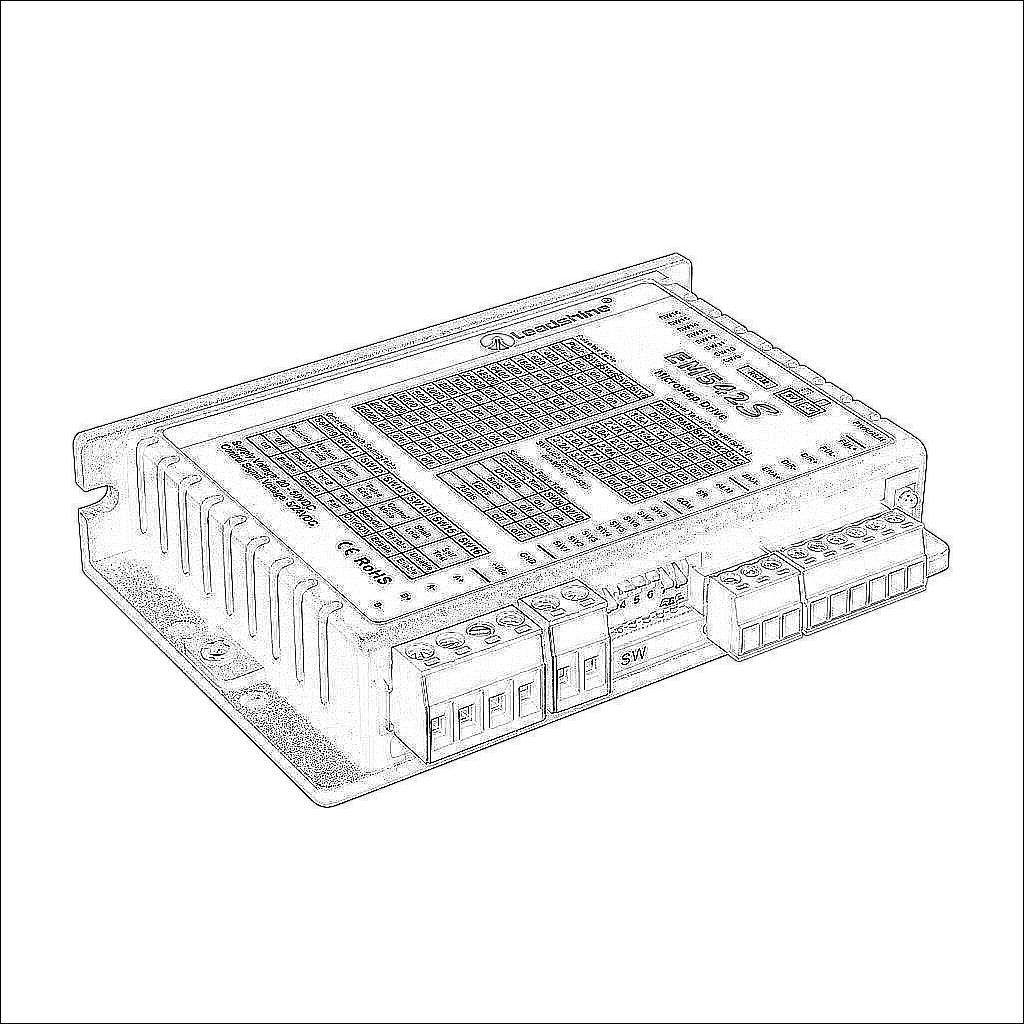

| Item | Stepper drive | |
| Stepper Drive Type | Open loop | |
| Controller Type | Microstepping | |
| Voltage Type | DC | |
| Amperage Rating | 4.2A per phase | |
| Number of Output Phases | 2 | |
| Nominal Input Voltage | 24-48 VDC | |
| Winding Type Control | Bipolar | |
| Output Type | MOSFET, dual H-bridge and 4-quadrant output | |
| Steps per Revolution | 200 to 25600 | |
| Temperature Rating | 0 to 65 deg C | |
| Enclosure Type | Enclosed | |
| IP Rating | IP20 | |
| Mounting | Panel | |
| Control Mode | Position | |
| Command Signal(s) |
| |
| Stall Detection | No | |
| Number of Discrete Input Points | 1 | |
| Discrete Input Type | Sinking/sourcing/line driver (differential) | |
| Number of Discrete Output Points | 2 | |
| Discrete Output Type | Sinking/sourcing | |
| Tuning Mode | Pre-tuned or optional configuration software | |
| Idle Current Reduction | Yes | |
| Drive Features | Self-test, anti-resonance (electronic damping), auto-tuning, 5/24 VDC input selector switch, command signal filtering, motor shaft lock and brake output | |
| Protection Type(s) |
| |
| Configuration | Rotary dial, dipswitches, jumpers or optional configuration software | |
| Additional Information | Optional 1.4.4-0409505-B3 programming cable available for software configuration | |
