| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |
| Series | ESW | |

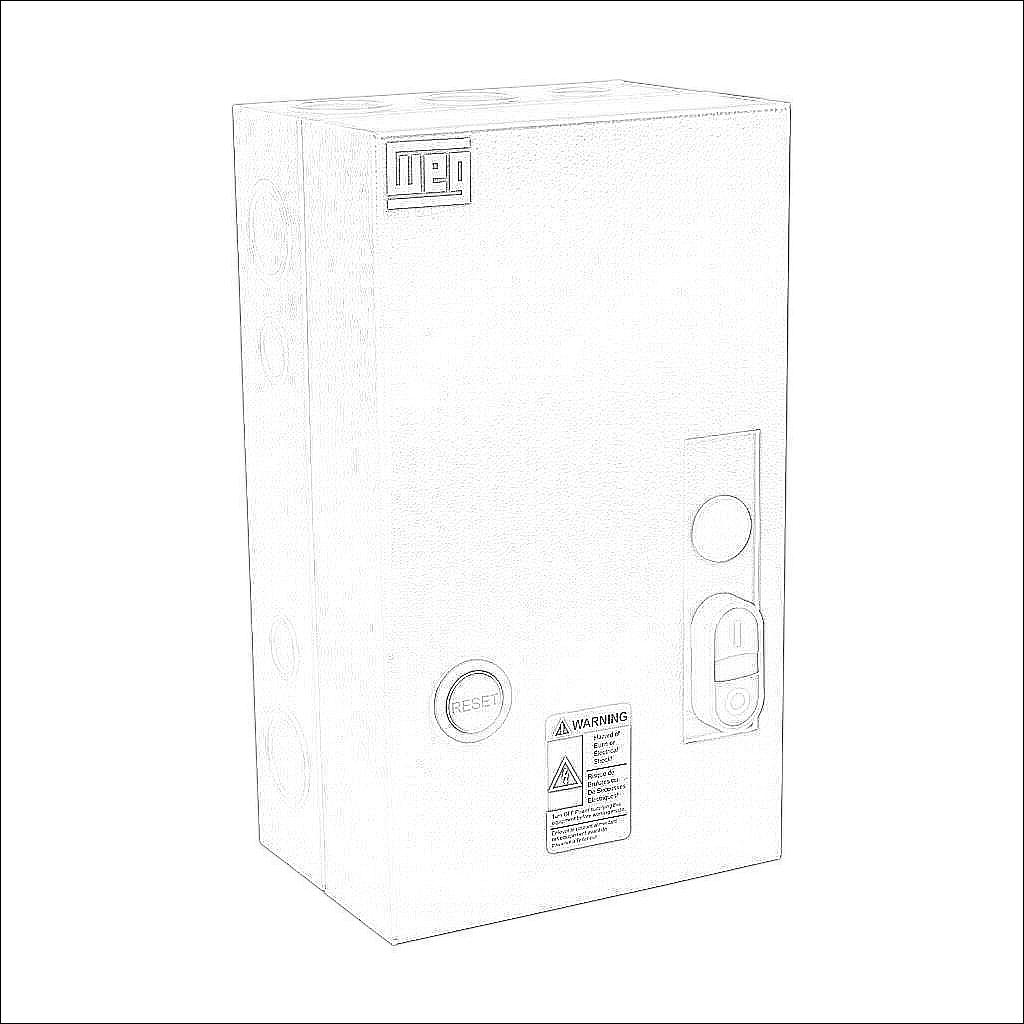

| Item | Motor starter | |
| Starter Type | Non-combination | |
| Coil Voltage | 480 VAC (50/60Hz) | |
| Amperage Rating | 65A | |
| Voltage Rating | 600 VAC | |
| Horsepower Rating | 40hp | |
| Overload Type | Bi-metallic | |
| Full Load Amperage Range | 50.0-63.0A adjustable | |
| Number of Poles | 3 | |
| Power Poles | (3) N.O. | |
| Auxiliary Contacts | (1) N.O./(1) N.C. | |
| Trip Class | Trip Class 10 | |
| Phase Loss Sensitive | Yes | |
| Ground Fault Protection | No | |
| SCCR Rating | 5kA SCCR | |
| UL Rating | UL 508 rated | |
| Enclosure Type | NEMA 1 | |
| Mounting | Wall | |
| Connection | Screw terminal | |
| Includes | Start, stop and reset pushbuttons | |
