| Technical Data | ||
|---|---|---|
| Brand | WEG Electric | |
| Series | ESWE | |

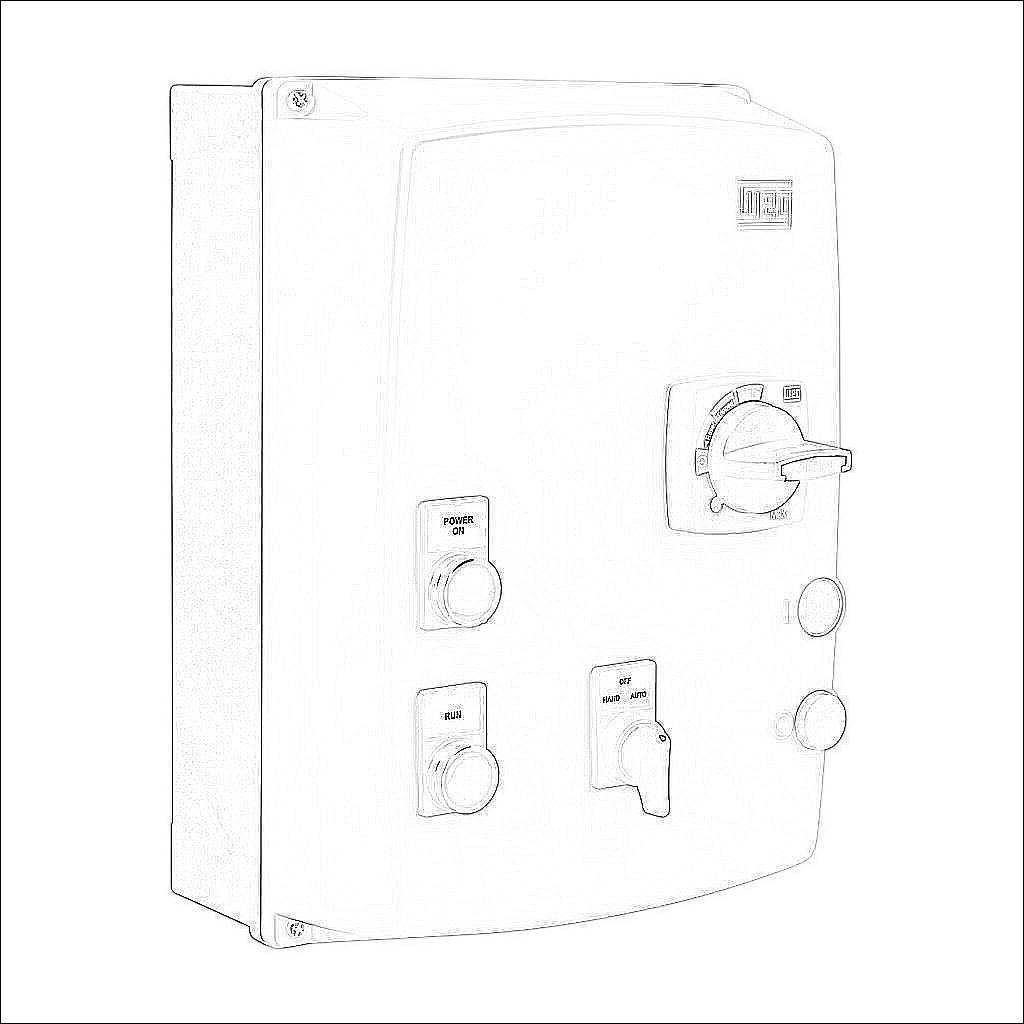

| Item | Motor starter | |
| Starter Type | Combination Type-E | |
| Coil Voltage | 208-240 VAC (60Hz)/180-208 VAC (50Hz) | |
| Amperage Rating | 9A | |
| Voltage Rating | 600 VAC | |
| Horsepower Rating | 2hp | |
| Overload Type | Bi-metallic | |
| Full Load Amperage Range | 2.5-4.0A adjustable | |
| Instantaneous Trip Rating | 52A | |
| Number of Poles | 3 | |
| Power Poles | (3) N.O. | |
| Auxiliary Contacts | (1) N.O./(1) N.C. | |
| Trip Class | Trip Class 10 | |
| Phase Loss Sensitive | Yes | |
| Ground Fault Protection | No | |
| SCCR Rating | 25kA SCCR | |
| UL Rating | UL 508A rated | |
| Enclosure Type | NEMA 4/4X | |
| Mounting | Wall | |
| Connection | Screw terminal | |
| Includes | Rotary disconnect switch, HOA selector switch, start/stop pushbuttons, and run indication lights | |
